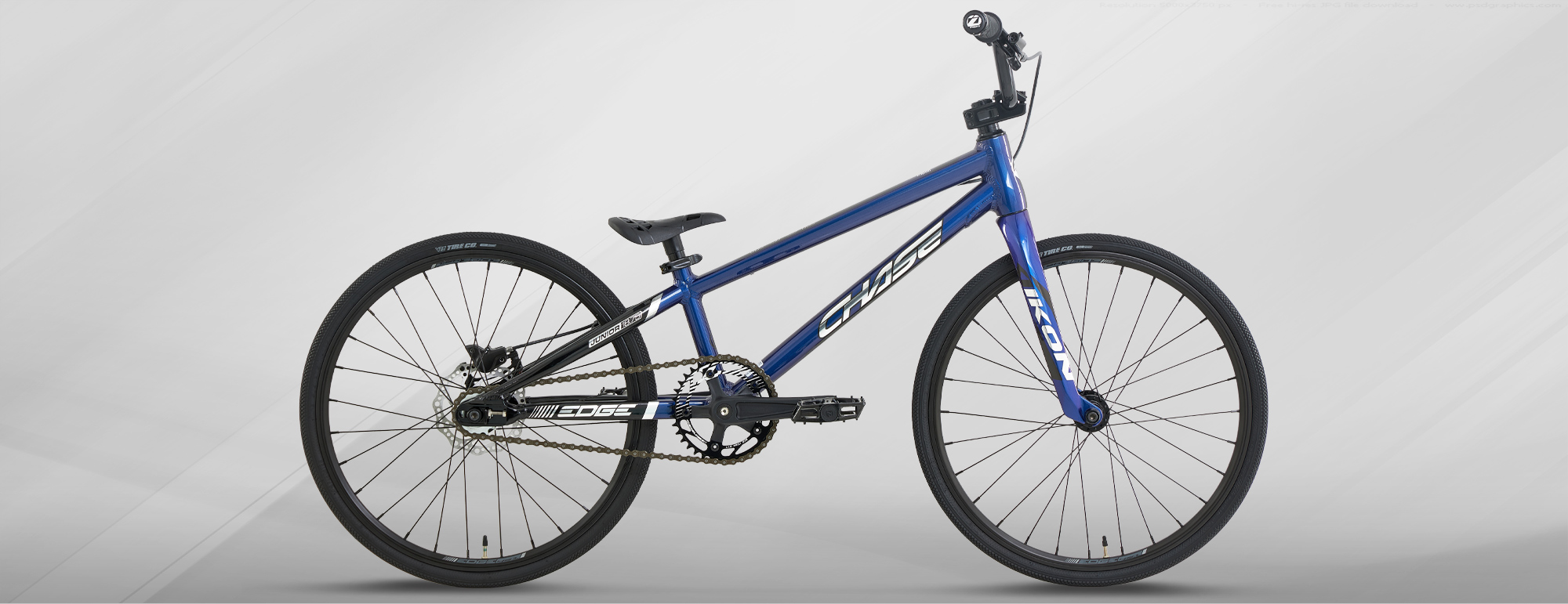

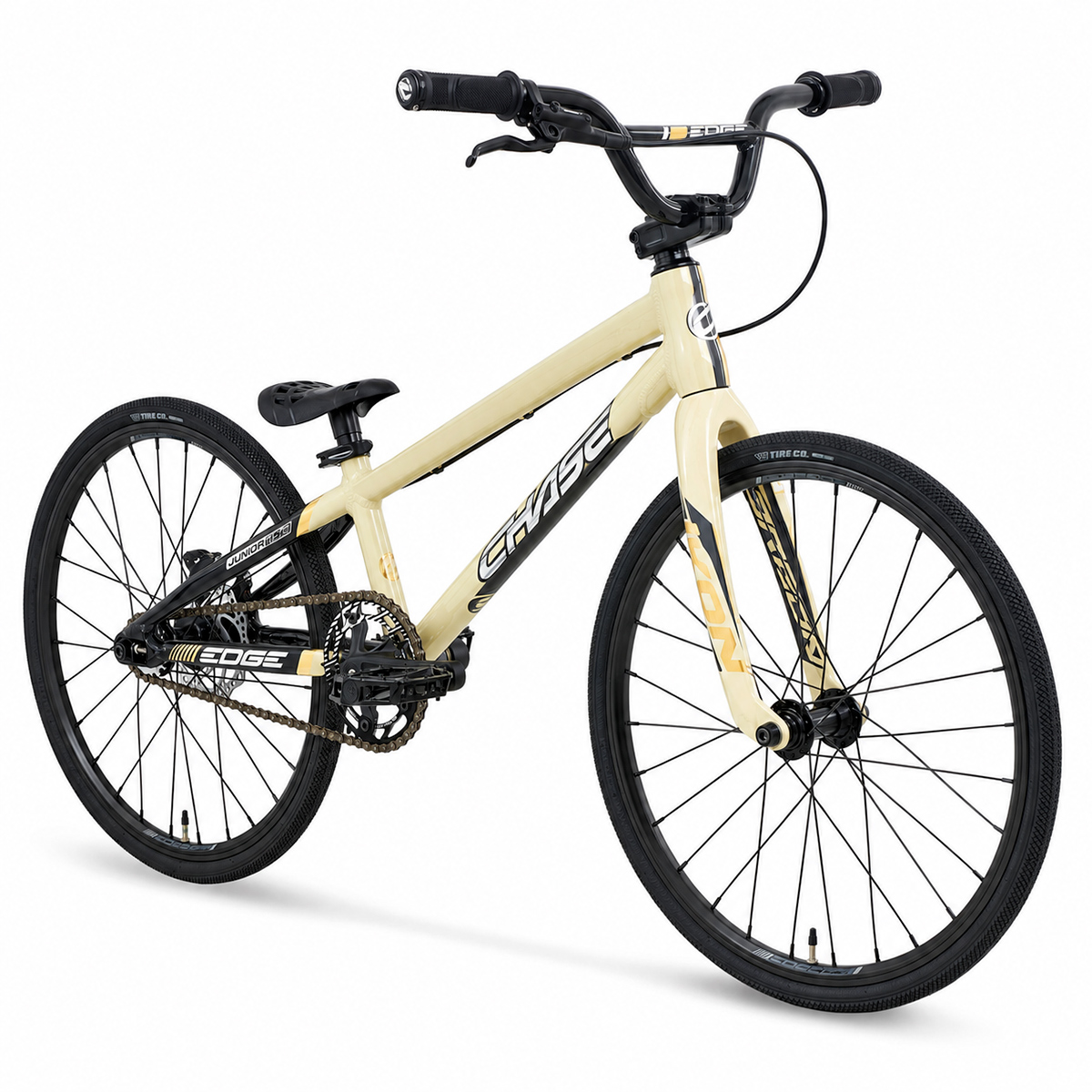

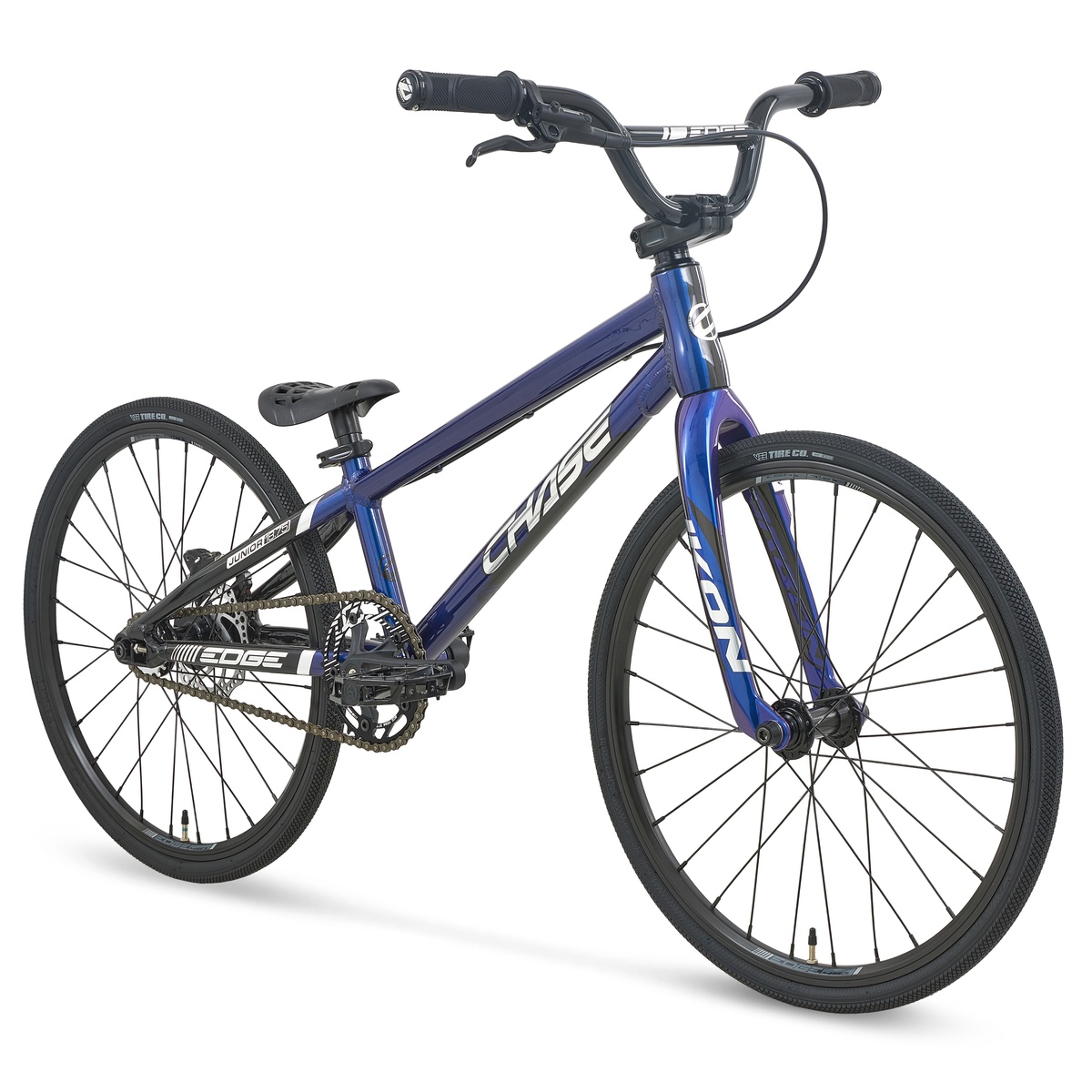

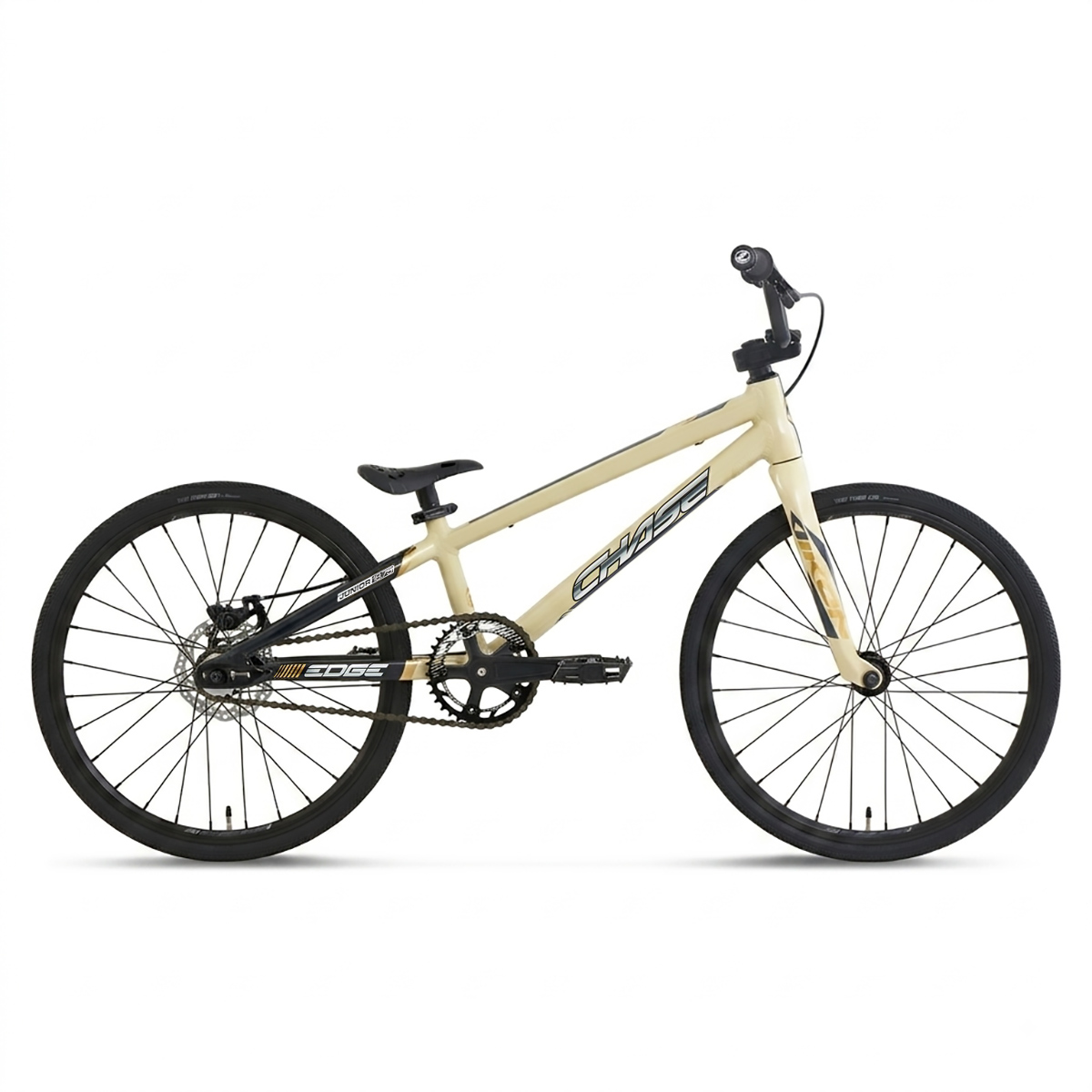

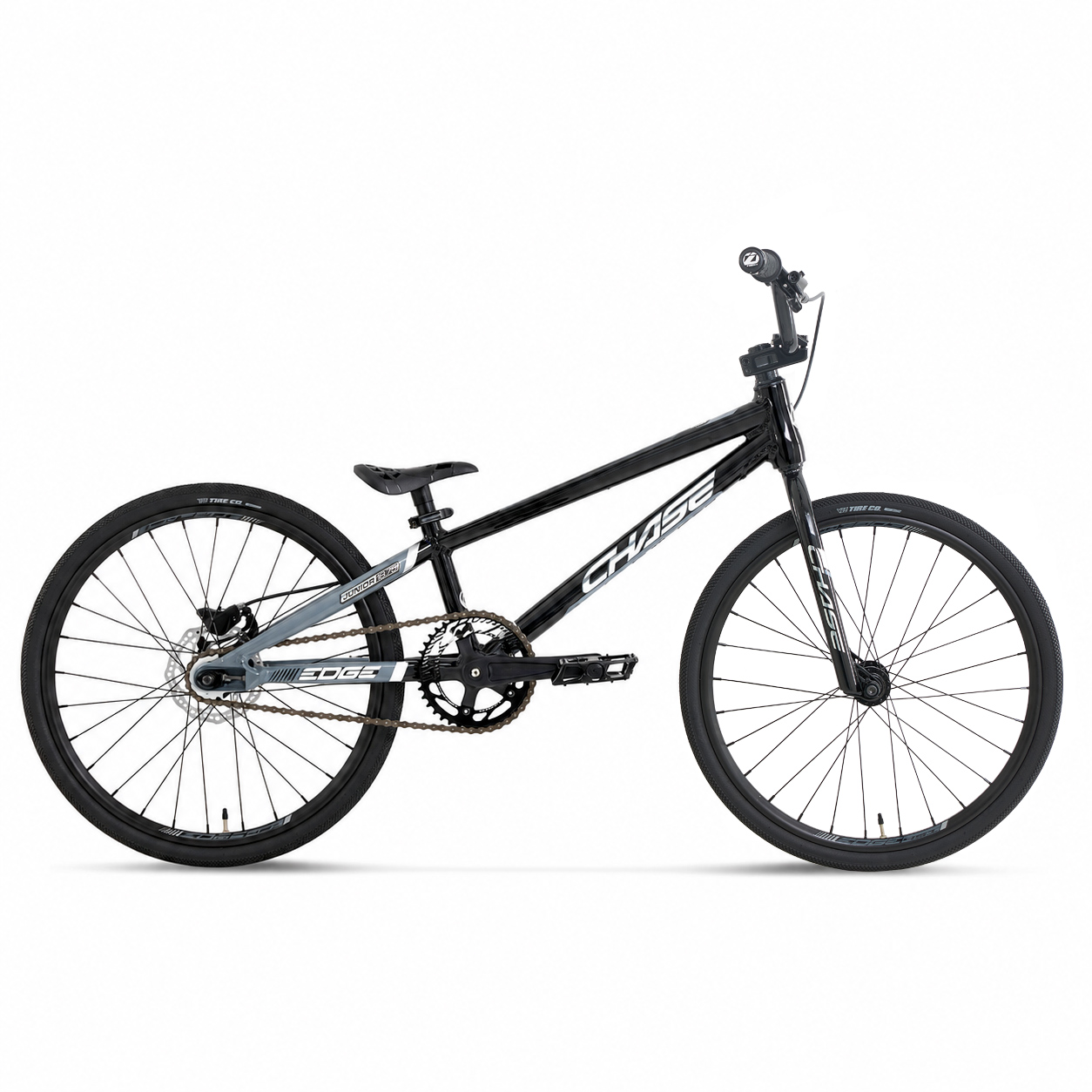

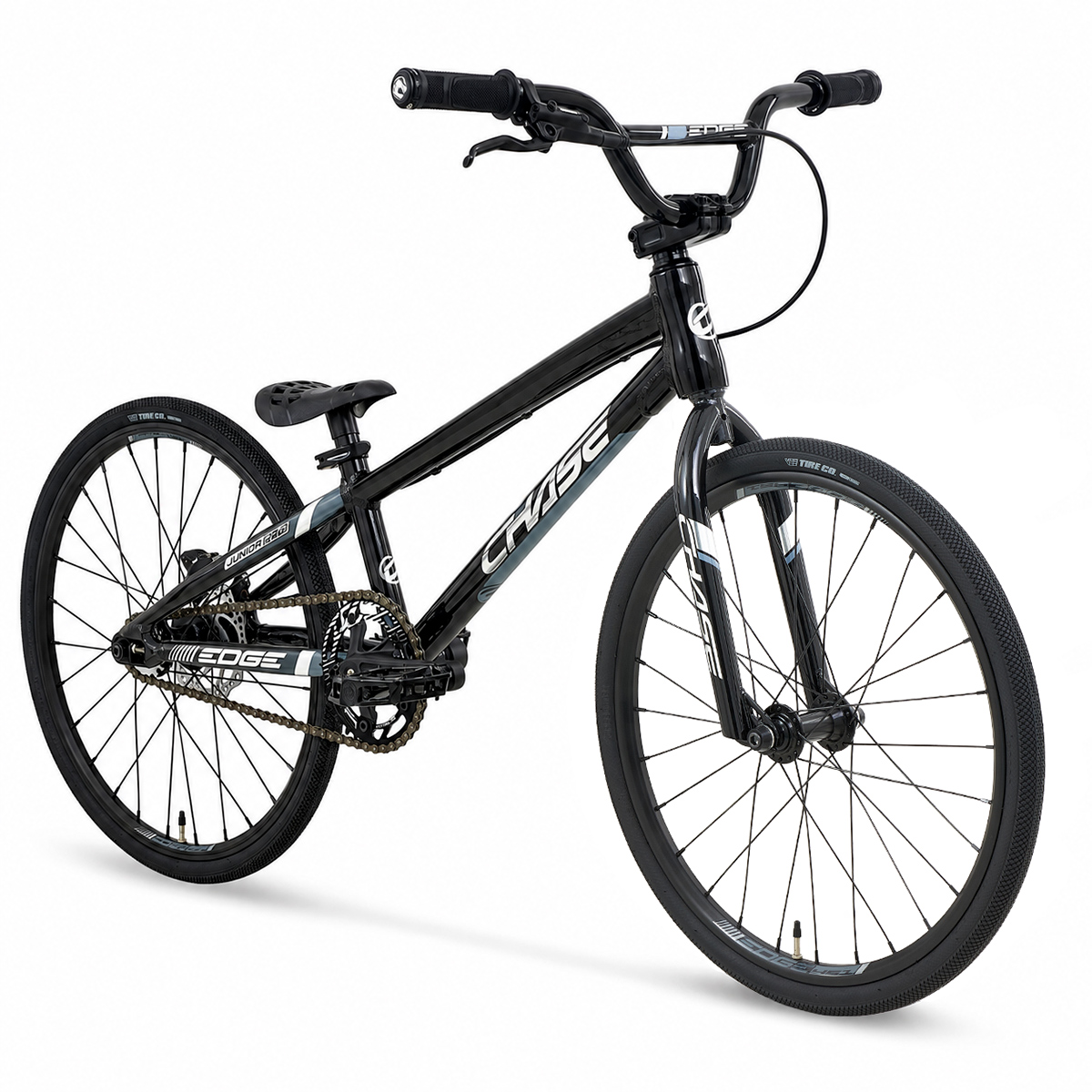

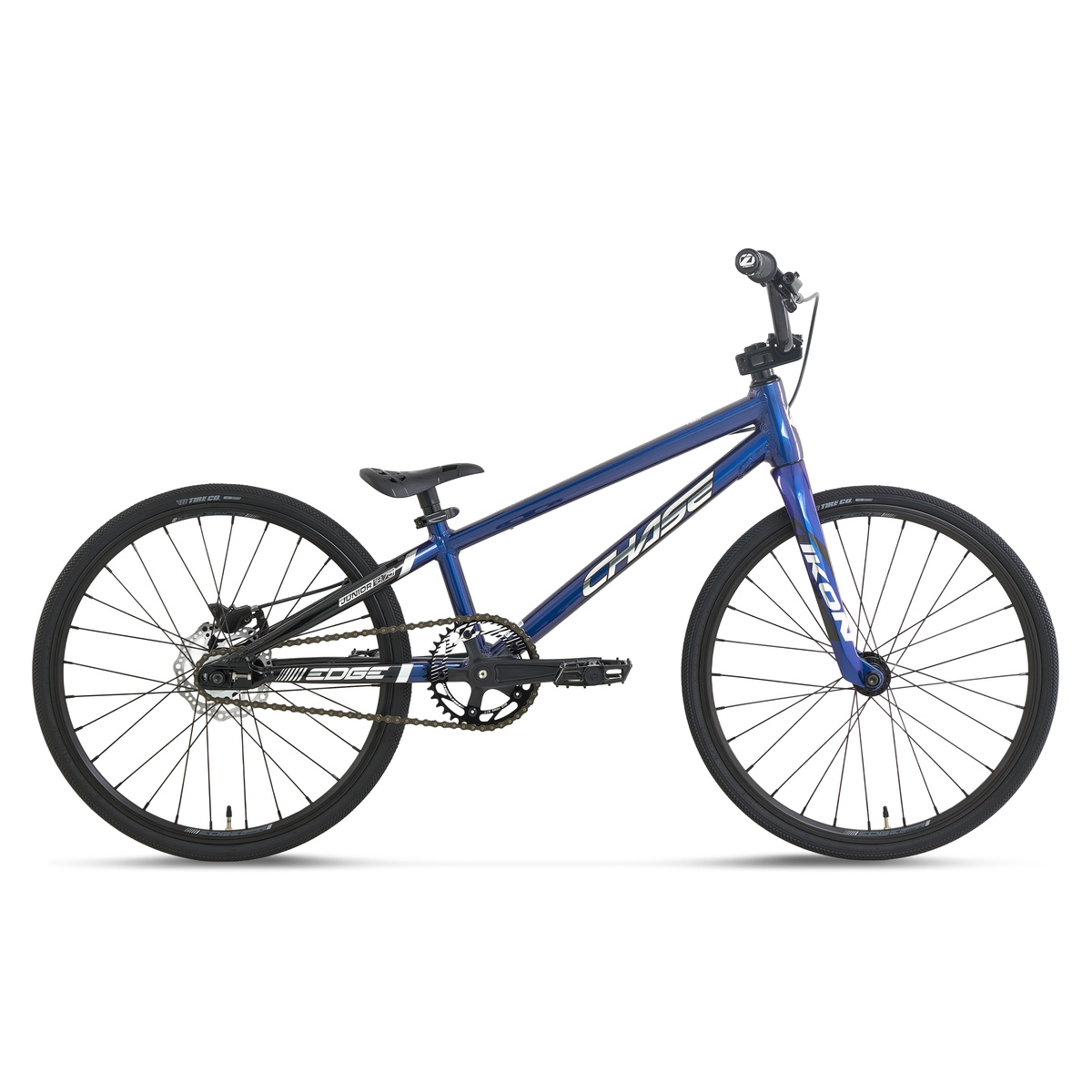

CHASE EDGE JUNIOR

The Chase Edge is our most sought after race bike for riders looking to get serious about BMX racing. With our 10 year history in offering complete bikes and our attention to detail, you know you are getting one of the best BMX bikes offered today! We build all our race bikes with our Championship winning geometry frames and then upgrade them with some of the top parts brands in BMX racing, such as Tioga, KMC, Insight and more. The Chase Edge will give you the edge over your competition and get on the way to #winwithChase

The Chase Edge Complete bike features a Disc Specific Race frame with Hydroformed & butted tubing, cable actuated disc brakes, integrated chain tensioner / disc brake mounting system, Tioga tires, Insight Chain Ring, Triple Clutch System cassette hub, KMC Chain, and a Pivotal Seat and Seat Post. With 10 bike sizes offered, the Edge line up gives you a full range of size options for just about any racer.

KEY FEATURES

  • FRAME: CHASE Edge Junior 18.75″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
  • FORK: CHASE Edge Mini, Full Cr-mo, 1″ Steer Tube
  • STEM: CHASE Edge 40mm
  • HANDLEBAR: CHASE Edge 4.25″
  • HEADSET: Integrated Sealed Bearing
  • CHAINRING: INSIGHT 40T 5 Bolts BCD 110mm
  • CRANKSET: CHASE Edge Alloy 155mm, 113mm squared axle BB
  • HUBS: CHASE Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
  • RIMS: CHASE Edge 118 Double Wall 20″x1-1/8″, 24H Front and 28H Rear
  • TIRES: TIOGA PowerBlock 20″x1-1/8″ Front and Rear
  • BRAKES: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
  • SEAT: INSIGHT Mini Pivotal
  • WEIGHT: 16.86 LBS / 7,95 KG WITHOUT PEDALS
  • RIDER SIZE: 4′ – 4′ 5,1″/ 1M22 – 1M35

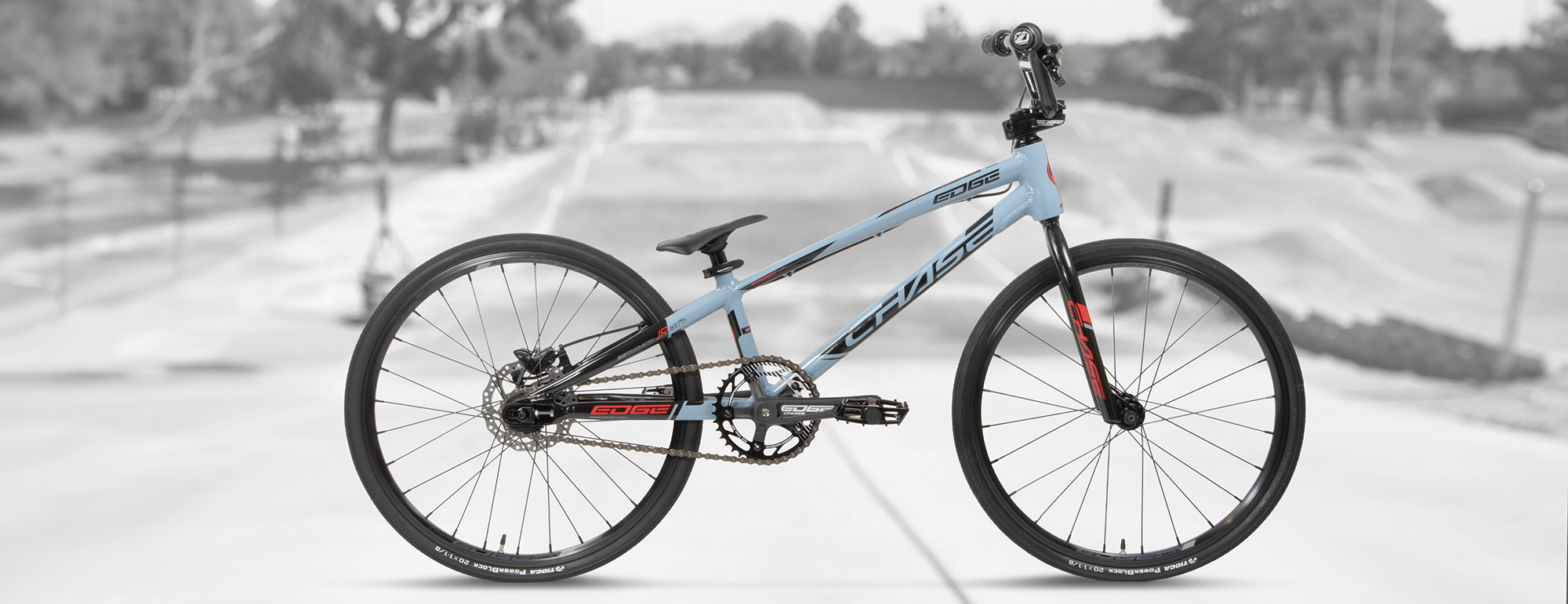

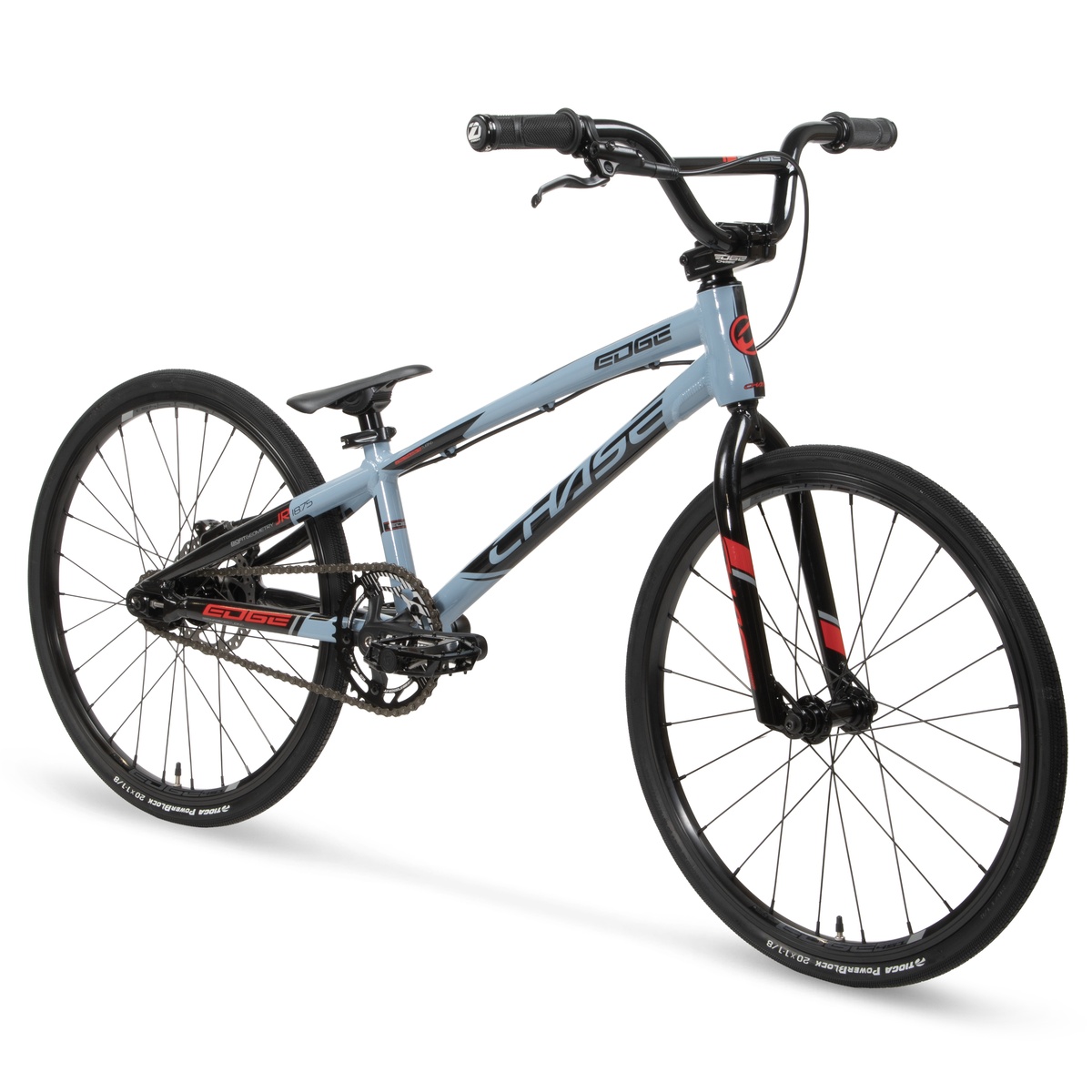

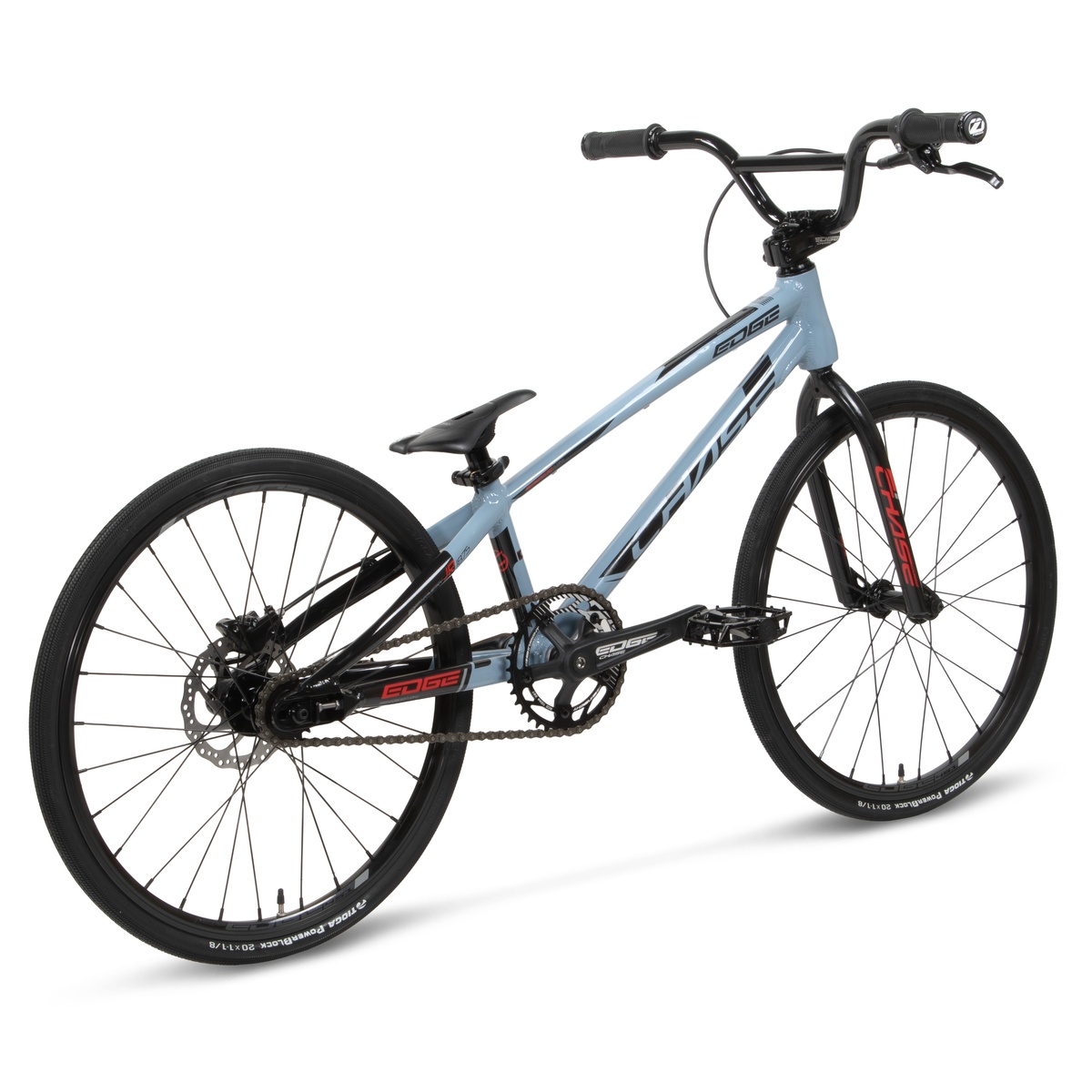

SLATE

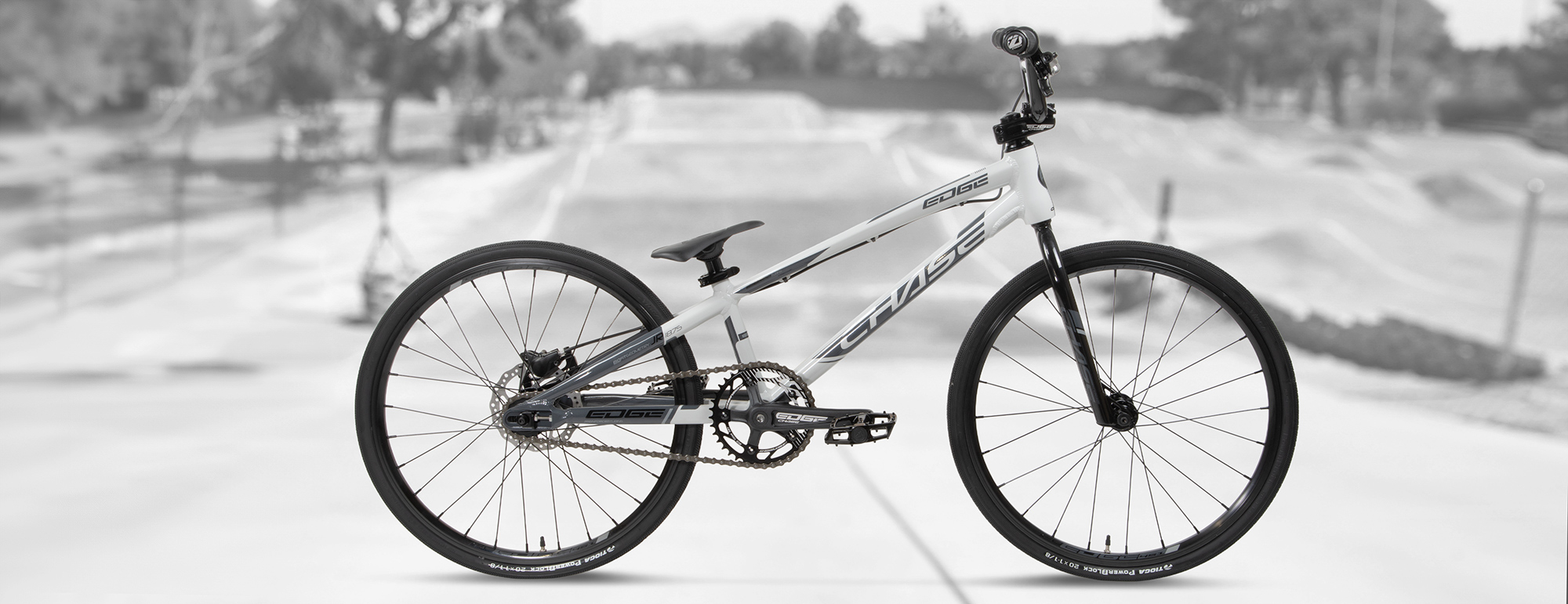

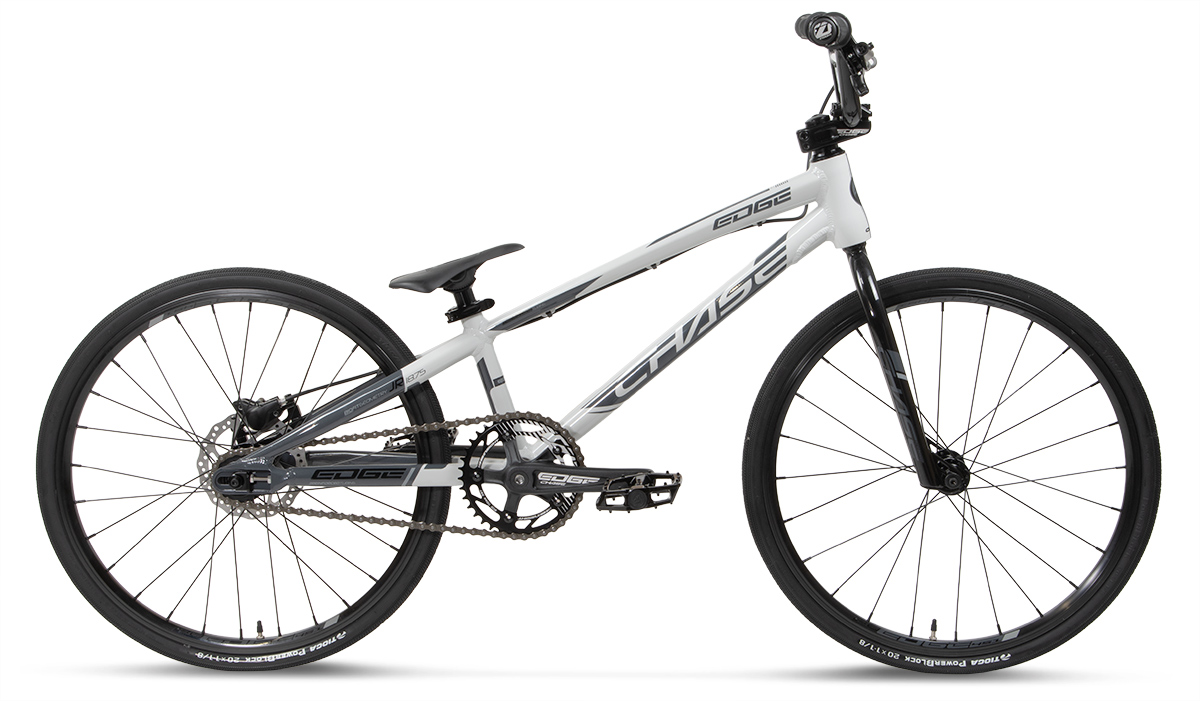

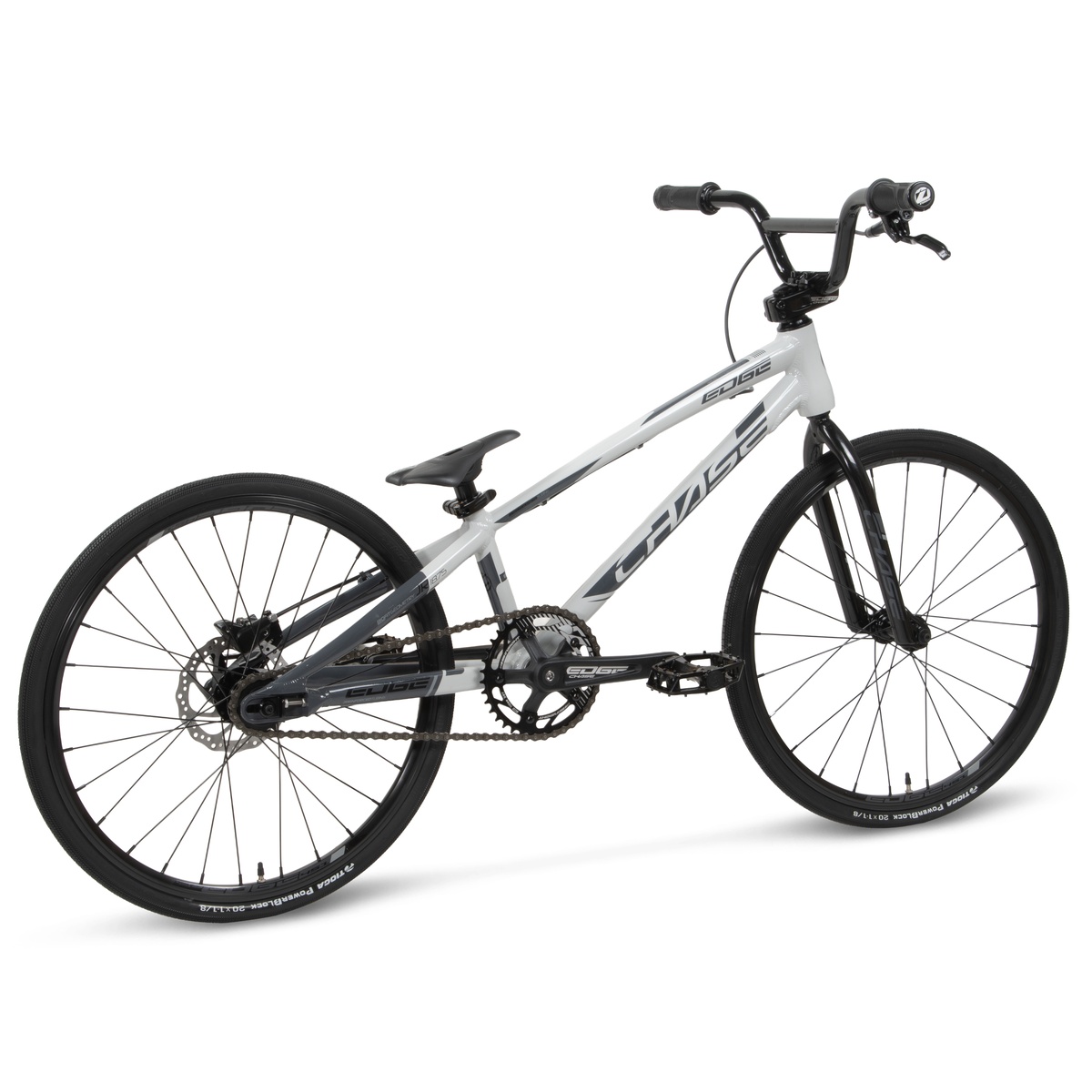

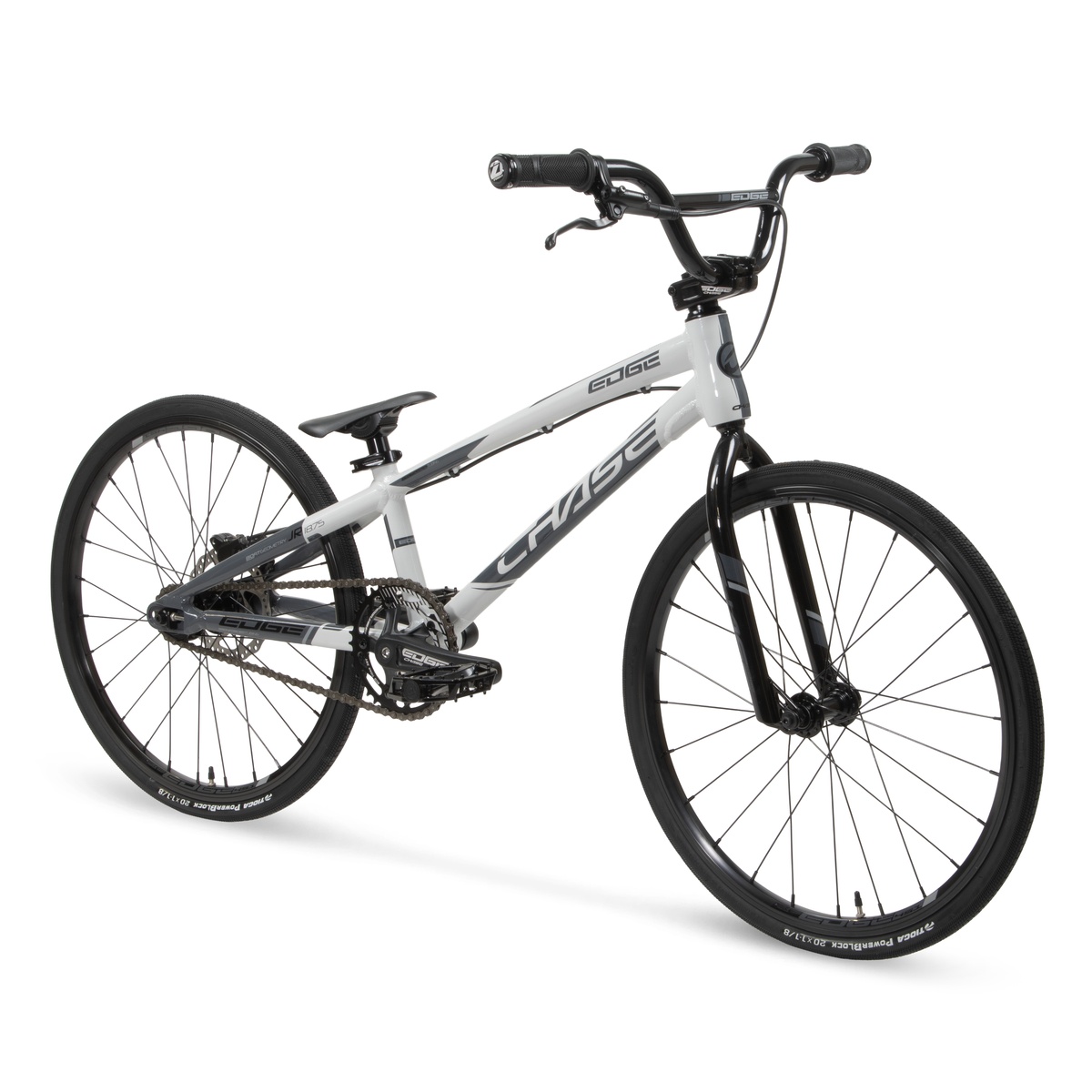

CEMENT

Chase has designed and added the new Enclosed Rear dropout on the Edge frame was developed to add strength to the frame for usage of the Disc Brake mount, as well as the easy of having an integrated chain tensioner system built into the frame. We use this same technology on our flagship BMX racing frame, the Chase ACT Carbon Fiber frame.

It doesn’t matter how much you can squat, if your rear hub ins’t worth squat. But with the new Chase Triple Precise Rear hub clutch system, all you will have to worry about is how to where to put you trophies instead of if your hub can take all the power you can dish out. The 3 pawls clutch system gives you a direct link to power, while keeping the rear hub light and easy to maintain. With 72 points of engagement, the drag is also minimal, while being secure enough for Champions riders like Connor Fields and Joris Daudet to ride on with confidence.

Chase utilizes the CNC machining process to produce out 3D Modulus Dropout and small parts of the Edge and Element frames. Using the CNC process allows us to design parts that are specifically built to work the best with our proprietary frame tubes, giving us another way to control the overall weight and strength – flex factor on the frames, to give you, the best ride and feel from our complete bikes. Precision machining enhances the beauty and craftsmanship ship of all frames offered from Chase.

Chase Bicycles utilizes tapered tubing to offer you the most durable, yet light weight products, to help you achieve optimum results on the BMX race track. Our tapered items, use multiple thicknesses in the same tube, so the tube can be reinforced where needed with precision to help reduce stress areas where needed and lighten up the areas that don’t require extra materials. In aluminum the result are tube walls that eliminate stress points, boosting strength, reducing weight and improving fatigue life. The advantage is clear : Tapered tubes enhances strength and durability, at less weight.

While each rider is unique, Chase Bicycles has developed Bio Fit sizing for our frames to offer riders the ultimate size options for BMX racing. The sizing used for the Chase line has been carefully designed to give riders the optimum power output in the size range offered. Our commitment to details and offering many size options, gives you a custom fit BMX frame, that you can buy right at your local Chase BMX Dealer.

Born from some of the best alloys for building BMX race bikes, our special 7005-T6 SpeedLite alloy is the perfect blend for our Hydroforming process, giving our RSP frames the core strength needed to produce unmatched speed on the track, while keeping the overall weight of the frame down to a minimum.

Hydroformed tubes have two main advantages. First, the narrow axis is a flatter surface, which means more surface area to carry the load, so it is stiffer & stronger across the minor axis. Secondly, the deeper axis is stiffer since the stiffness varies to the cube of the diameter, stronger to the square. When using an oval shaped tube on a typical BMX frame it helps reduce flex but only in one direction, but on the Chase frames, the tubes are oval in both directions in the main flex areas and these tubes help reduce flex in both main directions.

Chase utilizes the triple butting on our line of Element bikes. A triple-butted tube means it has three different wall thicknesses along its length. Chase uses this technology to reduce the amount of material used when building the Element frame, decreasing its weight by 15% compared to last years frame tubes used to construct the frame. Lighter where it can be and stiffer where it needs to be means no excess weight on the bike that gives you an advantage with the Element frame and against the completion.

Chase incorperates the Integrated headset system on all of our frames. Simply put, It is a bicycle frame, fork and bearing system designed to eliminate the need for a headset cup. To integrate means to combine and hopefully to simplify. What has been integrated by the integrated headset? The bearings now rest inside the frame instead of inside pressed-in cups, making it easier for headset installation, helping create less maintenance on your race bike, all while making the front end stiffer and the overall bike lighter.

BSA or more commonly know as a “Euro” Bottom Bracket refers to the tread in type of BB, using either a Internal or External Bottom Bracket with a 68 or 73mm BB shell with 1.370/1.375″ x 24 TPI threads and a left hand thread on the drive side cup. This is now considered to be a standard threaded bottom bracket shell or bottom bracket. We use the BSA Threaded BB on both the Edge and Element bikes, where a PF or Press Fit BB, with no treads is used on our ACT Carbon Frame.

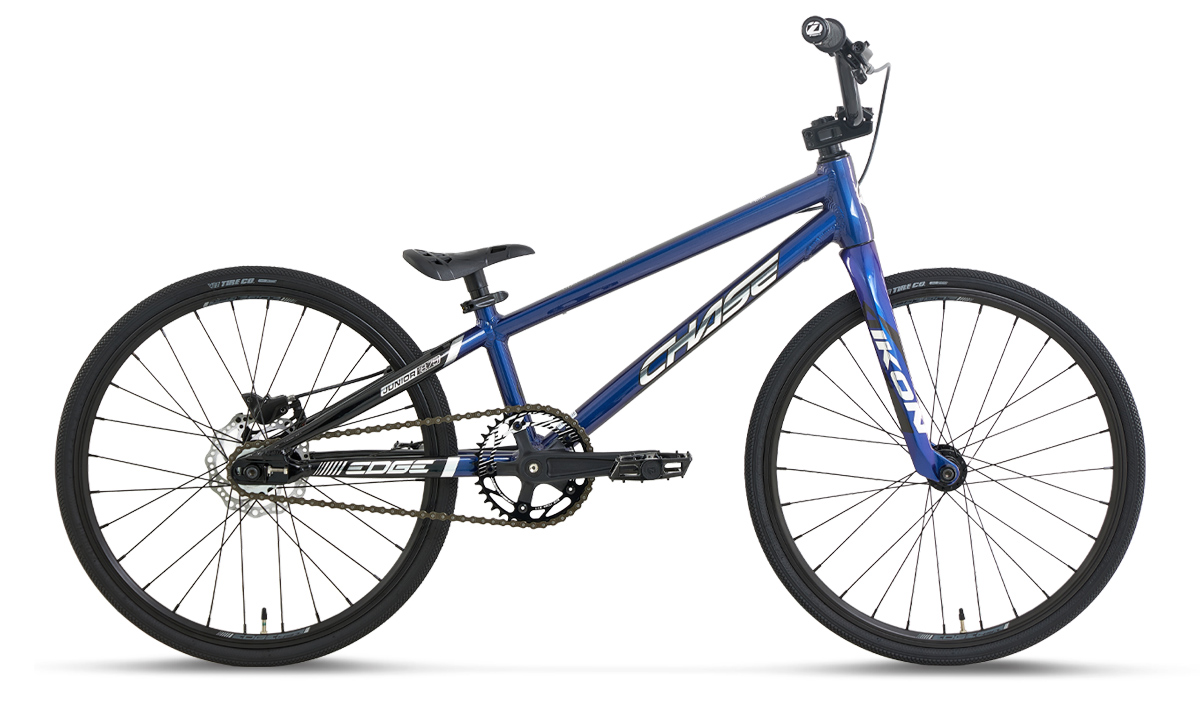

FRAME CHASE Edge Junior 18.75″ Top Tube, 6061 T6 Alloy, Integrated 1″ Head Tube, Enclosed rear dropouts and Chain tensioner system
FORK CHASE Edge Mini Full Cr-mo, 1″ Steer Tube With Tapered Blades
HEADSET Integrated IS 42/42 Reductor 1″, Sealed Bearing
HANDLEBAR CHASE Edge 22.2mm, 4.25″ Rise, 24″ Wide, 8° Back Sweep, 2° Up Sweep
GRIPS INSIGHT C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM CHASE Edge 40mm 6061 T6 AlloyLaser Etched Logo
BB Euro Square 113mm Sealed Bearing
CHAINRING INSIGHT 40 Tooth 5 Bolts 110mm 1/2″x3/32″ 3mm Alloy Ring
CRANK CHASE Edge 3 Piece Crank 155mm Alloy Arm, Cr-Mo Chainring Bolts
PEDAL Platform 9/16″
CHAIN KMC Z1 narrow 1/2″x3/32″
COG 16 Tooth
FRONT HUB CHASE Edge Mini, 3/8″ Axle, M6 bolts, 24H, Sealed Bearing
REAR HUB CHASE Edge Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 Bolts, Steel Cassette Body With 3 Pawls At Triple Angle Engagement For 24T Ratchets
SPOKES Front 208mm, Rear 198/199mm, 14 Gauge, Steel
NIPPLES 16mm, 14 Gauge, Brass
FRONT RIM CHASE Edge 118 Double Wall 24H 20″x1-1/8″ Presta Valve
FRONT TIRE TIOGA PowerBlock 20″X1-1/8″ Wire Bead
REAR TIRE TIOGA PowerBlock 20″X1-1/8″ Wire Bead
TUBES 20″x1-1/8″ Presta Valve
BRAKES Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
SADDLE Insight Mini Pivotal Nylon Plastic Body With Cr-Mo Bolt
SEAT POST Pivotal 25.4x110mm Alloy
SEAT CLAMP Chase Edge QR Alloy 28.6mm
FRAME SIZE TT CS min LR AF SA HT SPL BBH WHEELS
Micro 16.25"
412.75mm
10.85"
275.6mm
1.8"
46mm
71° 69° 4"
100mm
8"
203.5mm
10.25"
254mm
18×1"
Mini 17.25"
438.15mm
12.25"
312mm
1.8"
46mm
72° 70° 4.33"
110mm
8.8"
225mm
10.6"
269.2mm
20×1-1/8"
Junior 18.75"
476.25mm
12.5"
317.5mm
1.8"
46mm
73° 72° 4.33"
110mm
8.8"
225mm
10.6"
269.2mm
20×1-1/8"
Expert 19.75"
501.65mm
13"
330.2mm
1.8"
46mm
73° 72° 4.33"
110mm
8.8"
225mm
11"
279.4mm
20×1-3/8"
Expert XL 20"
508mm
13.5"
353mm
1.8"
46mm
73° 72° 4.7"
120mm
8.8"
225mm
11.5"
279.4mm
20×1.50"
Pro 20.5"
520.7mm
14"
355.6mm
1.8"
46mm
74° 72° 4.7"
120mm
9.3"
238mm
11"
279.4mm
20×1.75"
Pro XL 21"
533.4mm
14.15"
359.4mm
1.8"
46mm
74° 72° 4.7"
120mm
9.3"
238mm
11.5"
292.1mm
20×1.75"
Pro XXL 21.5"
546.1mm
14.15"
359.4mm
1.8"
46mm
74° 72° 4.7"
120mm
9.3"
238mm
11.5"
292.1mm
20×1.75"
Pro Cruiser 21.5"
546.1mm
14.5"
368.3mm
1.8"
46mm
74° 71° 4.7"
120mm
9.3"
238mm
10.6"
270mm
24×1.75"

With All complete bikes, we recommend having a professional Bicycle dealer complete your initial build up as well as doing a 1 month break in adjustment to check all specs and adjust the bike as needed for optimal riding performance. All bikes will need some adjustment out of the box and this is the responsibility of the final owner to make these adjustments.
