— CHASE ELEMENT PRO XL —

The ultimate Pro level complete bike - the Chase Element. With a updated frame design, that uses the same geometry as our Championship winning ACT and RSP Frame., letting you know it's a serious race bike. Our bikes can help you win by giving you an unfair, advantage with some of the most advanced technology for a complete bike in BMX racing.
Chase has been pushing the envelope for the past 12 years with our complete bikes and the newest edition of the Element, is the best BMX race bike we have ever offered.

The Element frame is built up with some of the best parts in BMX, including- IKON Tapered Pro Carbon 20mm Fork, Element Alloy Rims, Tioga Fastr Tires, KMC Chain, Sealed Bearing ISO Cassette hub with 72 points of engagement, 31.8 Handlebars & Stem, Insight PL4 Cranks, Insight Chainring, Grips, and Shimano Hydraulic Rear Brake with 120mm Rotor.

Please note: Photos are for illustrative purposes only. Real photos will follow later.

KEY FEATURES

  • FRAME : Chase Element Pro XL 21" NEW Top Tube with Tapered Head Tube and Close Drop Out, Integrated Chain tensioner system
  • FORK: Ikon Pro 20" Tapered Carbon 1-1/8"-1.5", Alloy Steer Tube, Drop Out & Top Cap
  • STEM: Chase Element 31.8mm 53mm
  • HANDLEBAR: Chase Element 31.8mm 8.0"
  • CHAINRING : Insight 44T 4 Bolts BCD 104mm
  • CRANKSET : Insight PL4 Pro 2 Piece Crank 175mm Alloy Arms, Press Fit BB86
  • HUBS : 36H, Sealed Bearing, 3/8" Bolts Front, ISO 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets Rear, 16T cog
  • RIMS : Chase Element Alloy 406 Double Wall 36H 20"x1.75" Presta Valve
  • TIRES : Tioga Fastr X 20×1.75" Front & 20×1.60" Rear
  • BRAKES: Shimano Hydraulic, 120mm Rotor
  • SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
  • WEIGHT: 20.85 LBS / 9.45 KG WITH PEDALS
  • RIDER SIZE: 5.5" - 5.10" / 1m65 - 1m78

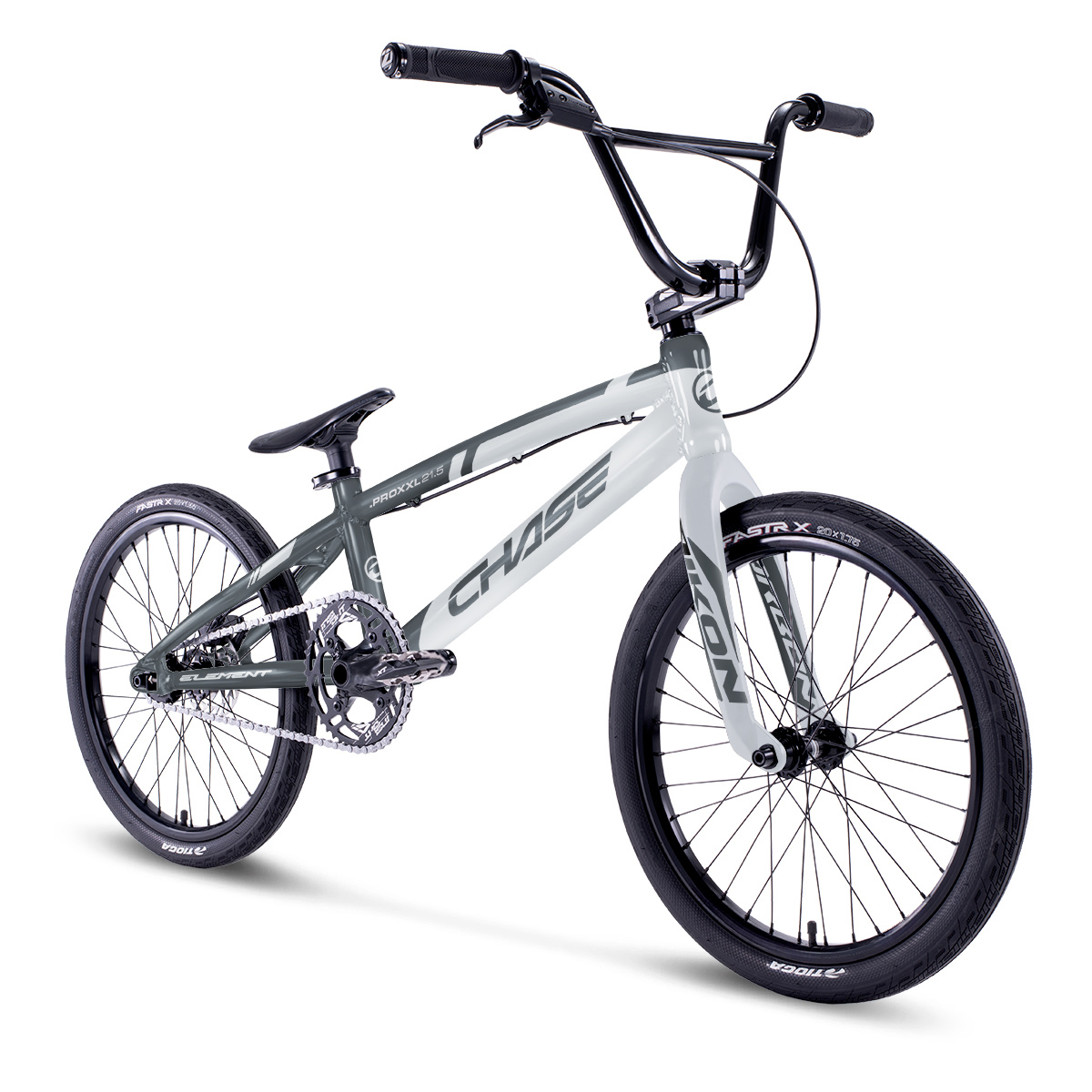

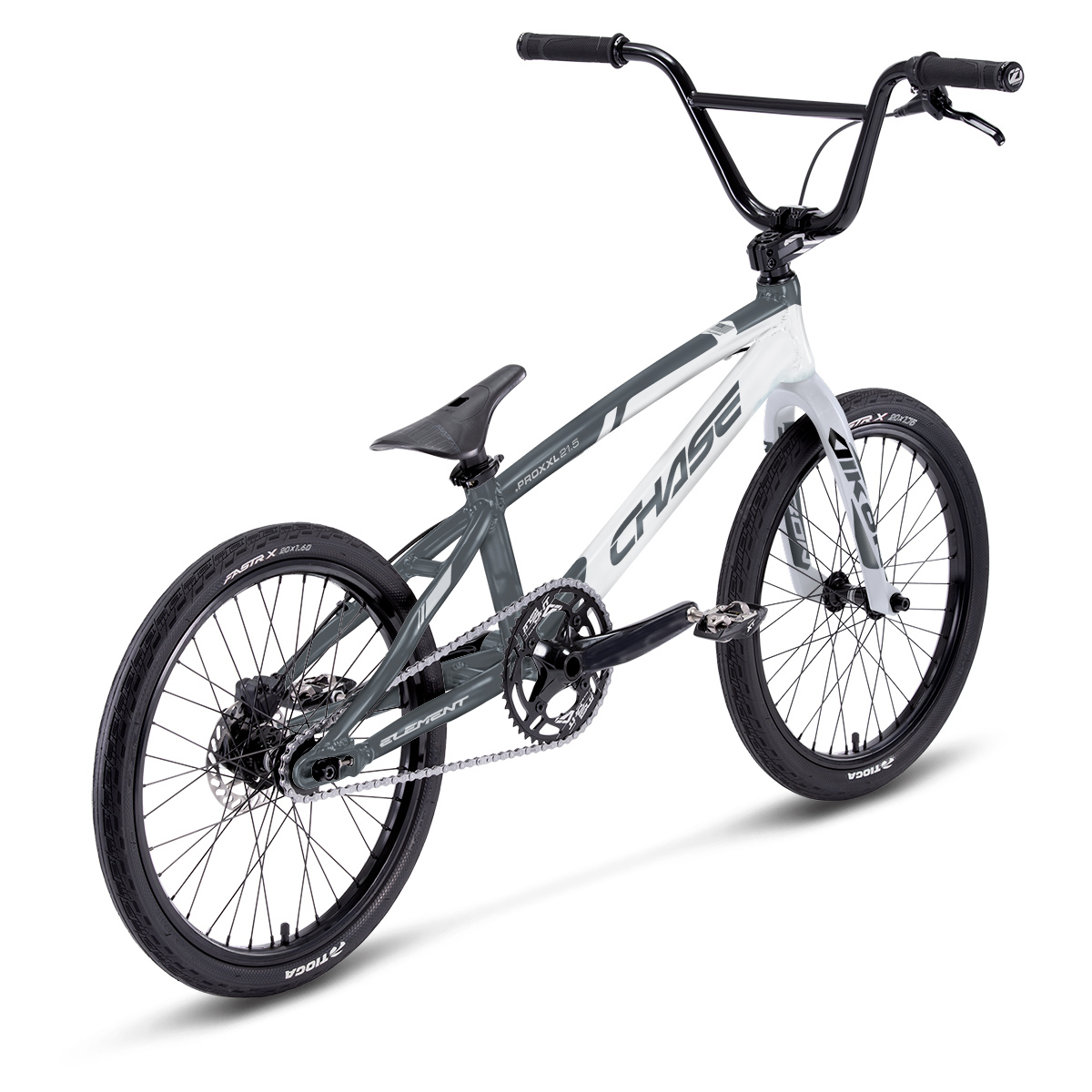

GREY / LIGHT GREY

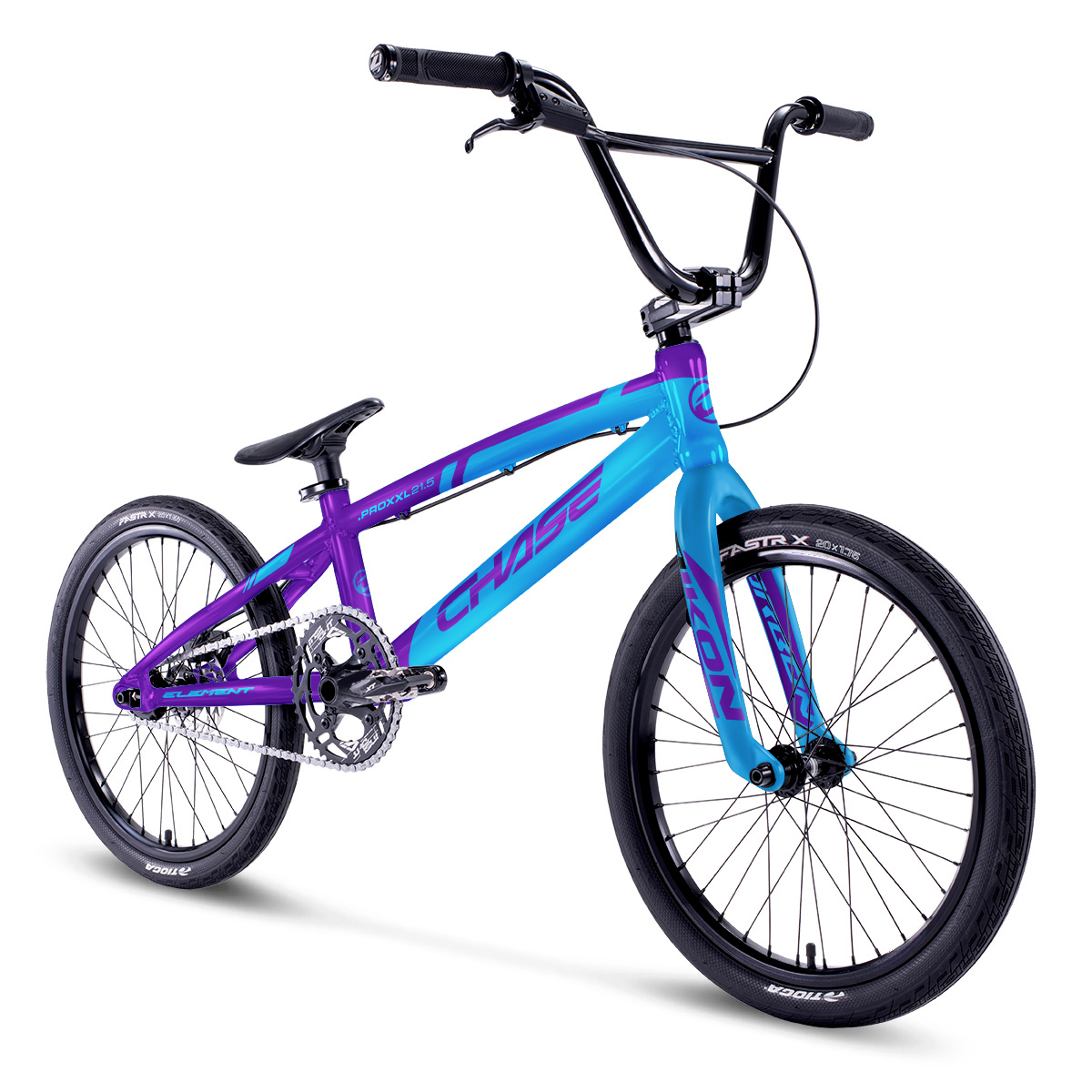

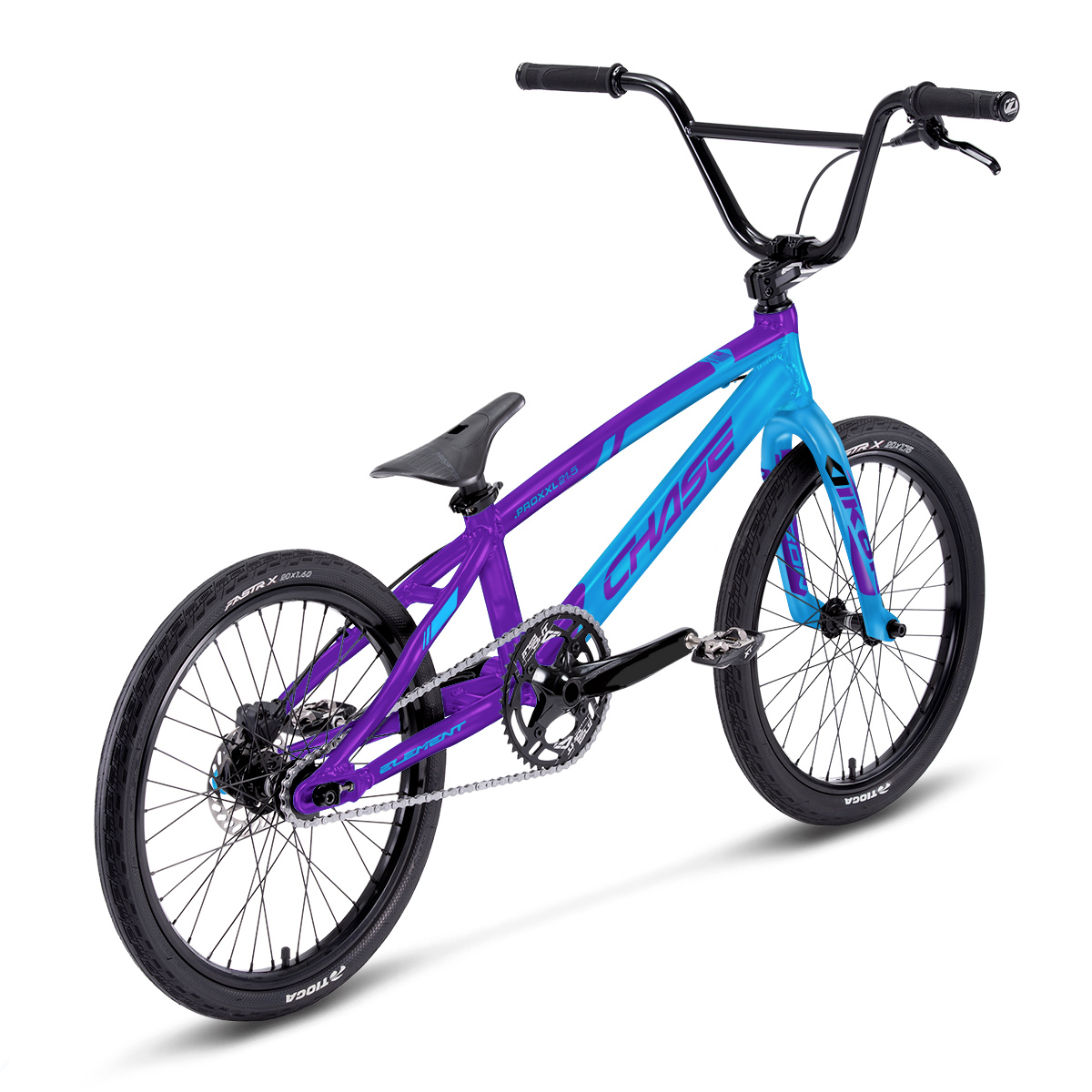

PURPLE / LIGHT BLUE

FRAME Chase Element Pro XL 21" NEW Top Tube 7005 T6 Alloy, Tapered Integrated Head Tube 1-1/8" to 1.5", Close Drop Out
FORK Ikon Pro 20" Tapered Carbon, Alloy 1-1/8" to 1.5" Steer Tube, 20mm Drop Out with Adaptor 3/8" Axle, Alloy Top Cap
HEADSET Tapered Integrated IS 42/52 1-1/8" to 1.5", Sealed Bearing
HANDLEBAR Chase Element Cromo 8", Diameter 31.8mm, Rise, 28.5" Wide, 10° Back Sweep & 2° Up Sweep
GRIPS Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM Chase Element 1-1/8" Steer Tube, Diameter 31.8mmmm, Length 53mm 6061 T6 Alloy CNC Laser Etched Logo
BB Press Fit 68/73mm Cartridge Bearings
CHAINRING Insight 44 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK Insight PL4 Pro 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Integrated Pedal Inserts, Cromo Chain Ring Bolts / Nuts
PEDAL Nylon Platform Pedal 9/16"
CHAIN KMC Z1 narrow 1/2"x3/32"
COG 16 Tooth
FRONT HUB 36H, Sealed Bearing, 3/8" Bolts
REAR HUB ISO 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES 14 Gauge, Steel
NIPPLES Brass 14Gx5/8"
RIMS Chase Element Alloy 406 Double Wall 36H 20"x1.75" Presta Valve Front and Rear
FRONT TIRE Tioga Fastr X 20"x1.75" 60 TPI Wire Bead
REAR TIRE Tioga Fastr X 20"x1.60" 60 TPI Wire Bead
TUBES 20''x1.5"-1.75" Presta Valve
BRAKES Shimano Disc Brake BL-MT200(R) Hydraulic
SADDLE Elevn PC Pivotal
SEAT POST Chase Aero Pivotal 27.2x260mm Alloy
SEAT CLAMP Chase Aero 27.2mm QR Alloy
CHAIN TENSIONER Integrated Built-In With New Lock Disc Adaptor

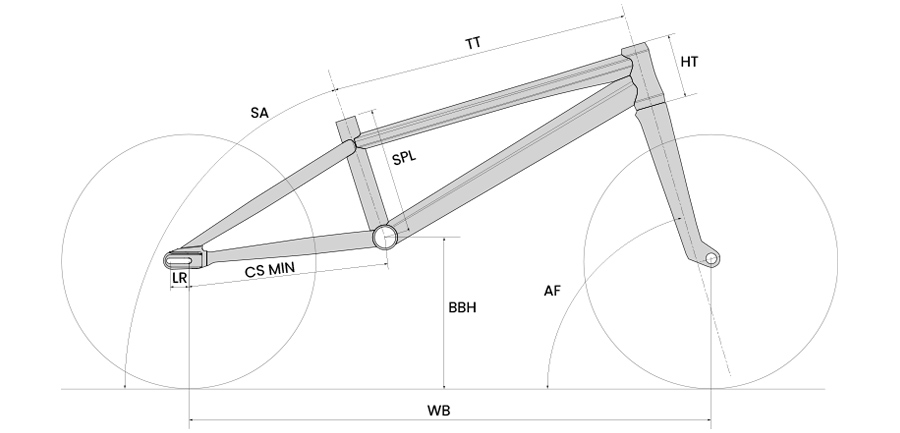

FRAME SIZE TT CS min LR AF SA HT SPL BBH WB WHEELS
Expert 20"
508 mm		 13.5"
342.9 mm		 1.5"
38.1 mm		 73° 70° 4.7"
120 mm		 9.2"
236 mm		 11"
279.4 mm		 35.45"
900.68mm		 20×1-3/8"
Pro 20.5"
520.7 mm		 14.25"
362 mm		 1.5"
38.1 mm		 74° 72,5° 4.7"
120 mm		 9.2"
236 mm		 11.5"
292.1 mm		 37"
940.46mm		 20×1.5"
Pro XL 21"
533.4 mm		 14.3"
363.3 mm		 1.5"
38.1 mm		 74° 72,5° 4.7"
120 mm		 9.2"
236 mm		 11.5"
292.1 mm		 37.6"
955.10mm		 20×1.75"
Pro XXL 21.5"
546.1 mm		 14.5"
368.3 mm		 1.5"
38.1 mm		 74° 72,5° 4.7"
120 mm		 9.2"
236 mm		 11.5"
292.1 mm		 38.3"
973.39mm		 20×1.75"
Pro XXXL 22.0"
558.8 mm		 14.5"
368.3 mm		 1.5"
38.1 mm		 74° 72,5° 4.7"
120 mm		 9.2"
236 mm		 11.5"
292.1 mm		 39"
993.01mm		 20×1.75"
Pro Cruiser 21.5"
546.1 mm		 15.25"
387.3 mm		 1.5"
38.1 mm		 73° 69,5° 4.7"
120 mm		 9.8"
250 mm		 12"
304.8 mm		 38.33"
973.65mm		 24×1.75"
Pro Cruiser + 22.0"
558.8 mm		 15.25"
387.3 mm		 1.5"
38.1 mm		 73° 69,5° 4.7"
120 mm		 9.8"
250 mm		 12"
304.8 mm		 38.88"
987.67mm		 24×1.75"
