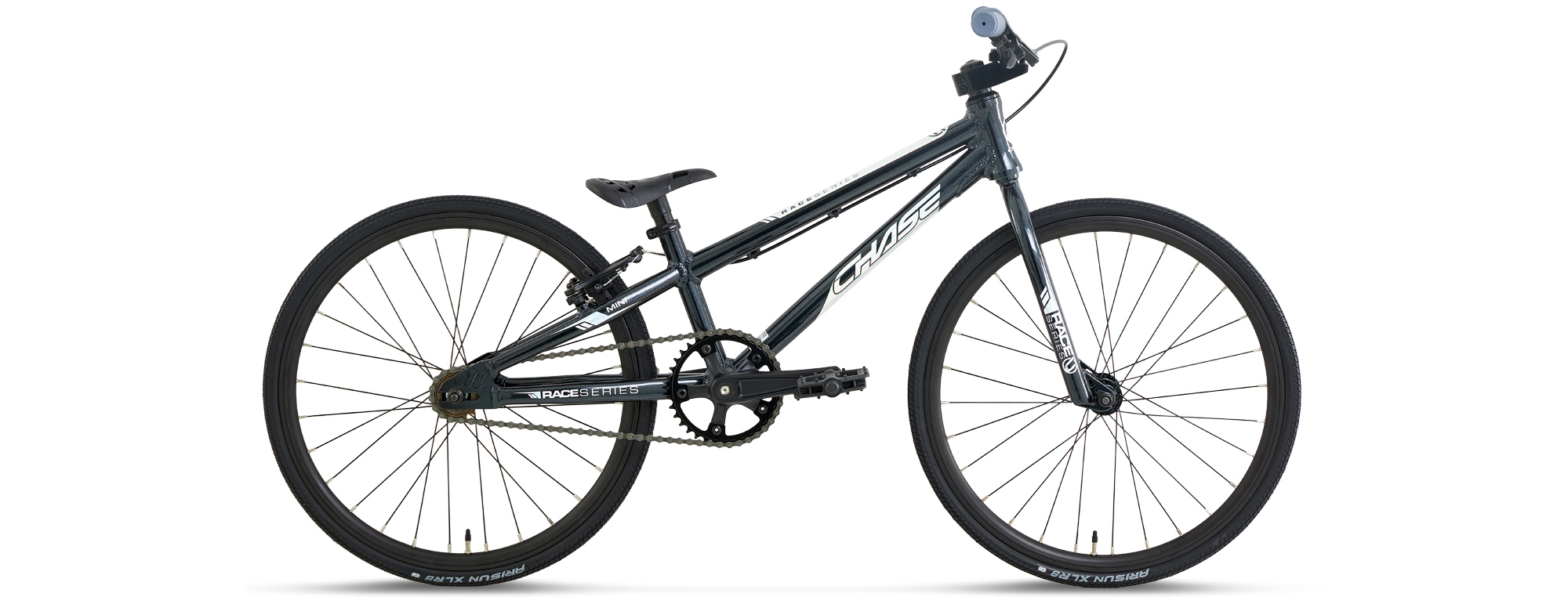

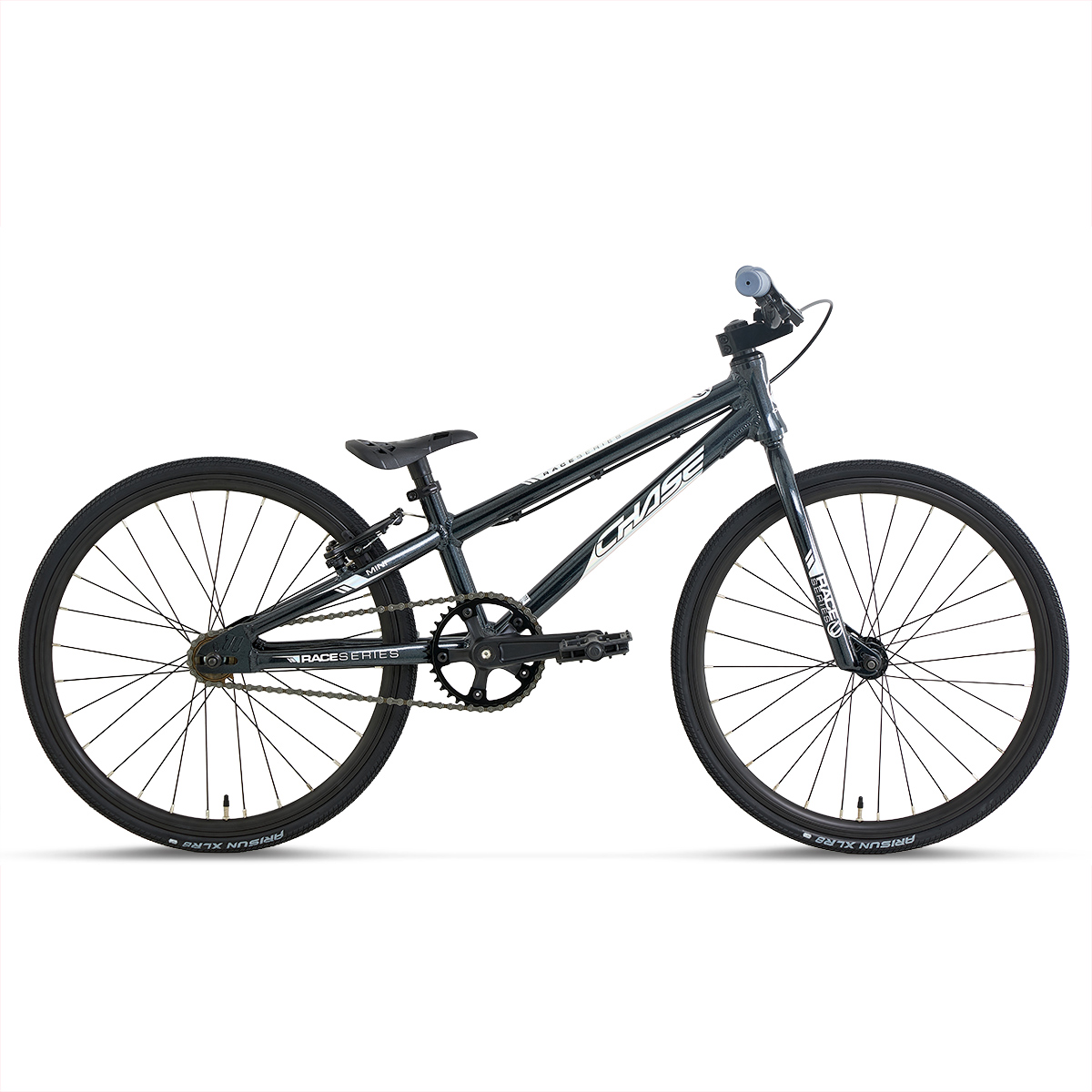

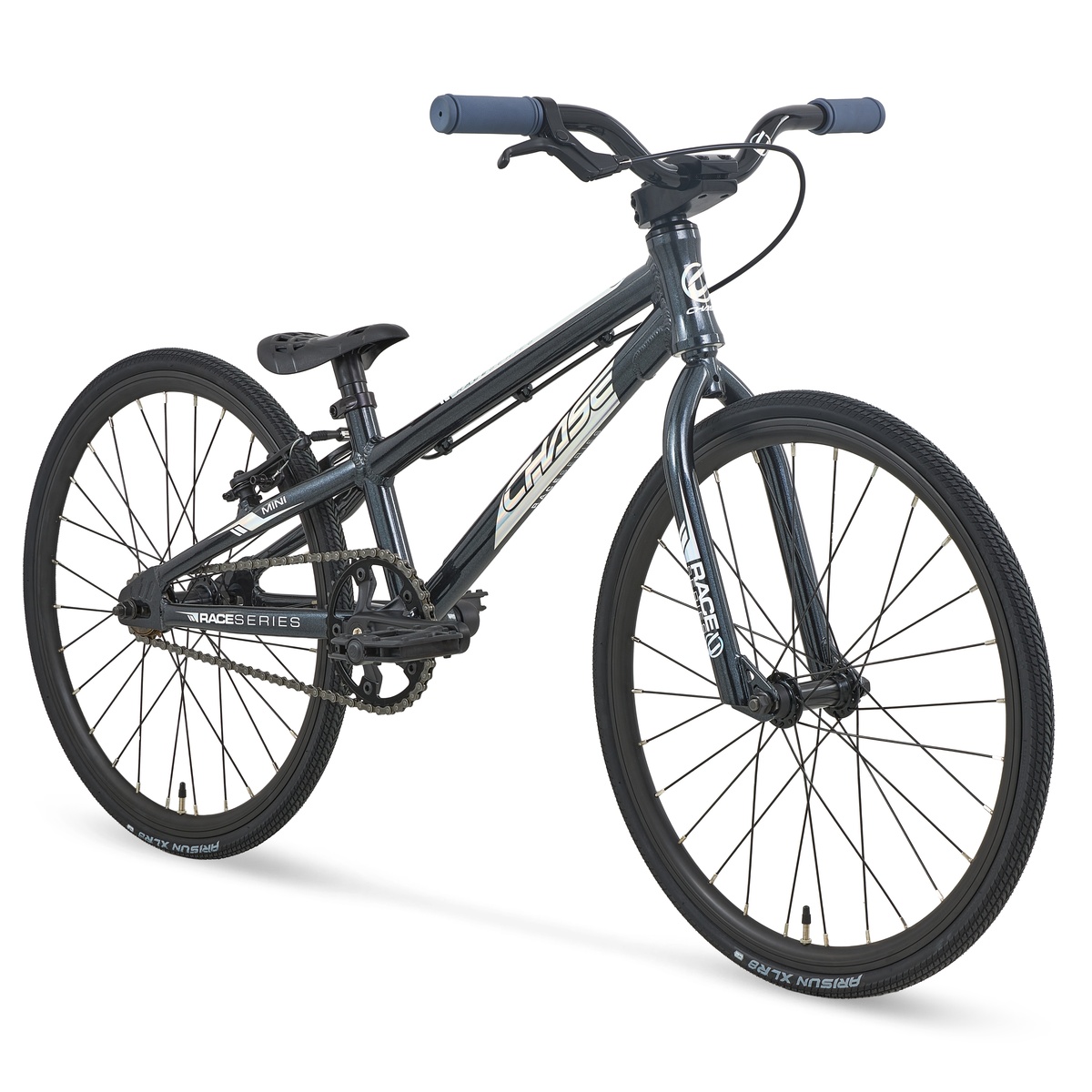

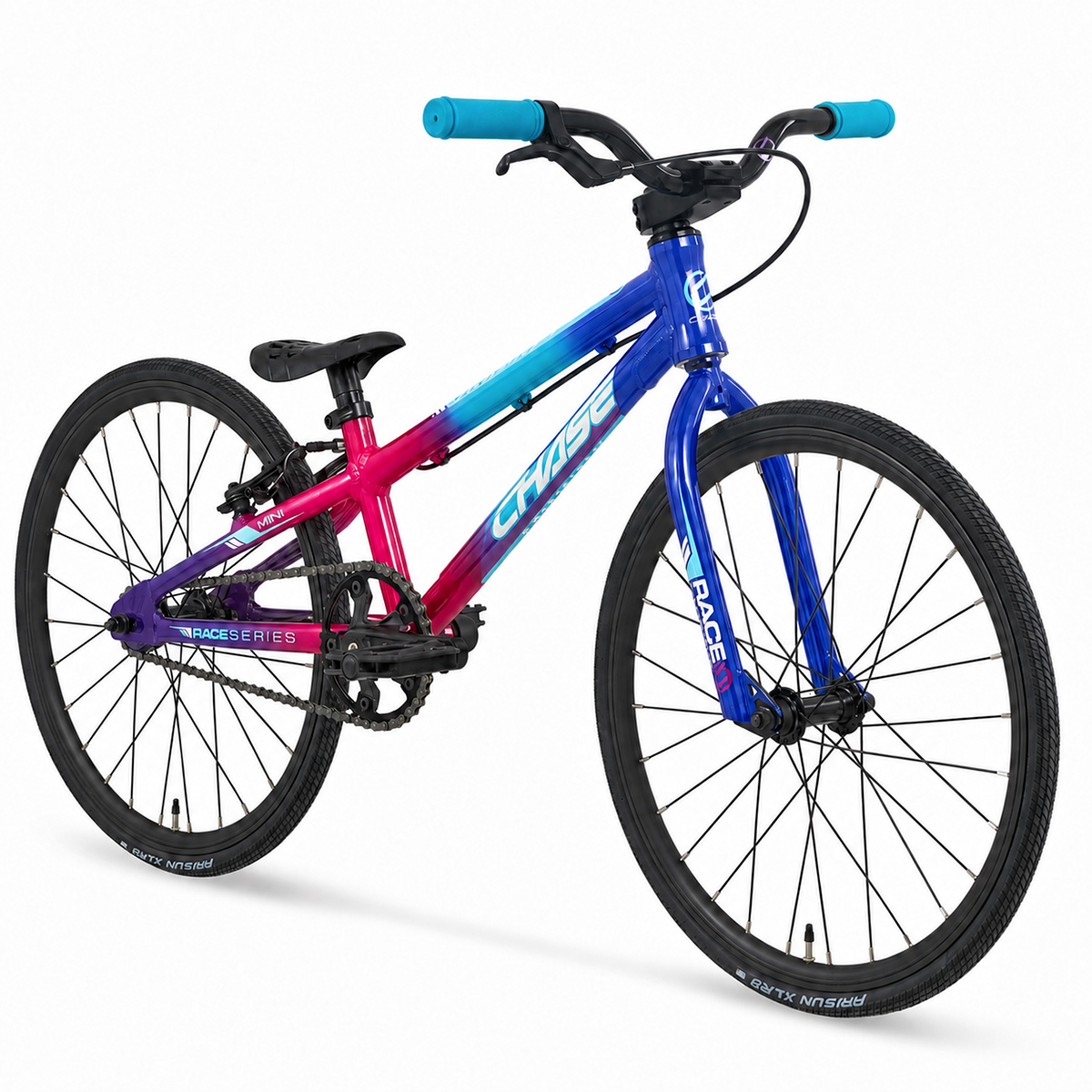

— CHASE RACE SERIES MINI —
The New Chase Race series Mini is the perfect entry-level 20″ BMX race bike for the beginning youth racers. Made with an aluminum frame and integrated head tube, using the winning race proven geometry from our championship winning brand, Chase BMX, This BMX is a truly certified BMX racing bike. With race inspired graphics, 100% chromoly bars and forks, sealed hubs, double walled rims, and raced tuned parts from great companies like KMC and ARISUN, giving you the best value for your money in a entry-level race bike, from a company that actually races.
KEY FEATURES
- FRAME: Mini 17.25" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
- FORK: Full Cr-mo, 1" Steer Tube
- STEM: Top Load, 1" Steer Tube, Length 45mm, 6061-T6 Alloy
- HANDLEBAR: CHASE Chromo 2.25″
- HEADSET: Integrated IS 42/42 Reductor 1", Sealed Bearing
- CHAINRING: 36T 5 Bolts BCD 110mm, Steel
- CRANKSET: 3 Pieces Crank 135mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
- HUBS: 28H, Double Contact Seals Bearing, 3/8" Axle/Nuts, 16T cog
- RIMS: Double Wall Alloy 28H 1-1/8" Presta Valve Front and Rear
- TIRES: Arisun XLR8 1-1/8" Wire Bead Front and Rear
- BRAKES: V-Brake 95mm, Mini Reach 2 Fingers lever
- SEAT: Mini Combo Alloy Post/Nylon Seat
- WEIGHT: 7.1 Kg / 15.658 lb Without Pedal
- RIDER SIZE: 3′ 7.3″ – 4′ 1.2″ / 1M10 – 1M25
| FRAME | Mini 17.25" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals |
| FORK | Full Cr-mo, 1" Steer Tube |
| HEADSET | Integrated IS 42/42 Reductor 1", Sealed Bearing |
| HANDLEBAR | Cr-mo 2.25" Rise, Diameter 22.2mm, 20" Wide, 8° Back Sweep & 2° Up Sweep |
| GRIPS | 92mm Soft Single Ply Without Flange |
| STEM | Top Load, 1" Steer Tube, Diameter 22.2mm, Length 45mm, 6061 T6 Alloy |
| BB | Euro Square 113mm Sealed Bearing |
| CHAINRING | 36 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Steel |
| CRANK | 3 Pieces Crank 135mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts |
| PEDAL | Platform Nylon 9/16" |
| CHAIN | KMC Z6 1/2"x3/32" |
| COG | Freewheel 16 Tooth 1/2"x3/32" |
| FRONT HUB | 28H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
| REAR HUB | 28H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
| SPOKES | 14 Gauge, Steel |
| NIPPLES | 16mm, 14 Gauge, Brass |
| FRONT RIM | Double Wall Alloy 28H 1-1/8" Presta Valve |
| REAR RIM | Double Wall Alloy 28H 1-1/8" Presta Valve |
| FRONT TIRE | Arisun XLR8 1-1/8" Wire Bead |
| REAR TIRE | Arisun XLR8 1-1/8" Wire Bead |
| TUBES | 20''*1-1/8" Presta Valve |
| BRAKES | V-Brake 95mm, Mini Reach 2 Fingers Lever |
| SADDLE | Mini Combo Alloy Post/Nylon Seat |
| SEAT POST | Mini Combo Alloy Post/Nylon Seat |
| SEAT CLAMP | 28.6mm Alloy 1 Bolt |
| FRAME SIZE | TT | CS min | LR | AF | SA | HT | SPL | BBH | WB | WHEELS |
|---|---|---|---|---|---|---|---|---|---|---|
| Micro | 16.25" 412.75mm |
10.85" 275.6mm |
1.8" 46mm |
71° | 69° | 4" 100mm |
8" 203.5mm |
9.1" 231.1mm |
29.09" 739mm |
18×1" |
| Mini | 17.25" 438.15mm |
12.25" 312mm |
1.8" 46mm |
72° | 70° | 4.33" 110mm |
8.8" 225mm |
10.6" 269.2mm |
31.49" 800mm |
20×1-1/8" |
| Junior | 18.75" 476.25mm |
13.00" 330.2mm |
1.8" 46mm |
73° | 72° | 4.33" 110mm |
8.8" 225mm |
10.6" 269.2mm |
33.85" 859.9mm |
20×1-1/8" |
| Expert | 19.75" 501.65mm |
13.25" 336.5mm |
1.8" 46mm |
73° | 72° | 4.33" 110mm |
8.8" 225mm |
11.0" 279.4mm |
34.79" 883.8mm |
20×1-3/8" |
| Pro | 20.5" 520.7mm |
14.25" 361.9mm |
1.8" 46mm |
74° | 72° | 4.7" 120mm |
9.3" 238mm |
11.0" 279.4mm |
36.9" 938mm |
20×1.75" |
With All complete bikes, we recommend having a professional Bicycle dealer complete your initial build up as well as doing a 1 month break in adjustment to check all specs and adjust the bike as needed for optimal riding performance. All bikes will need some adjustment out of the box and this is the responsibility of the final owner to make these adjustments.
