— CHASE RACE SERIES PRO —

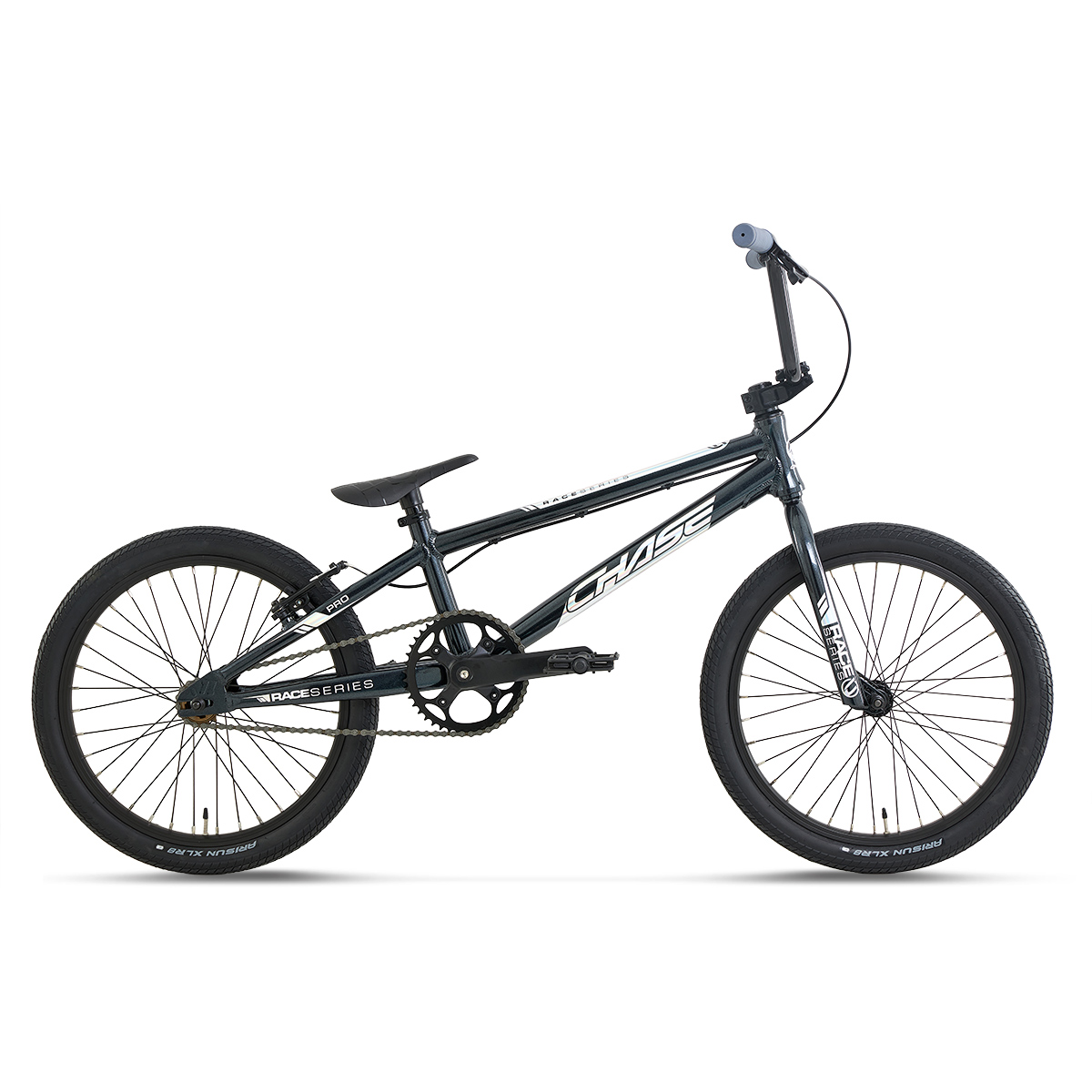

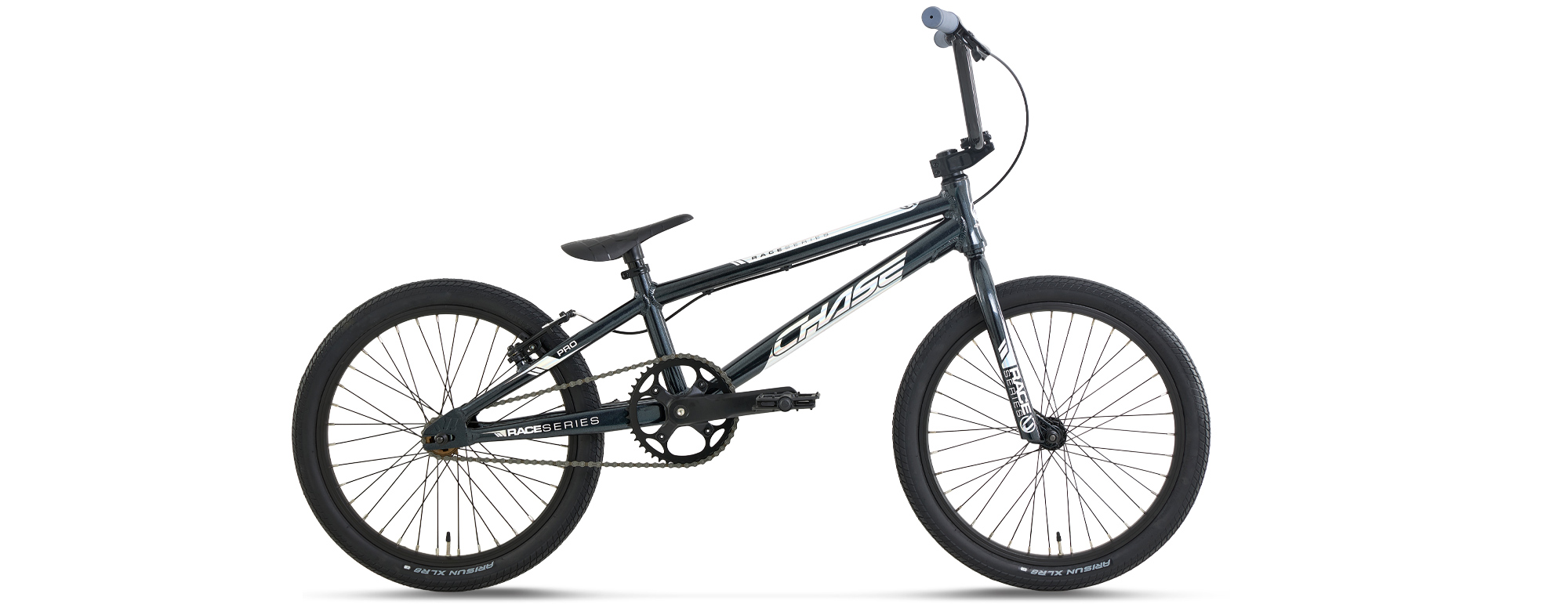

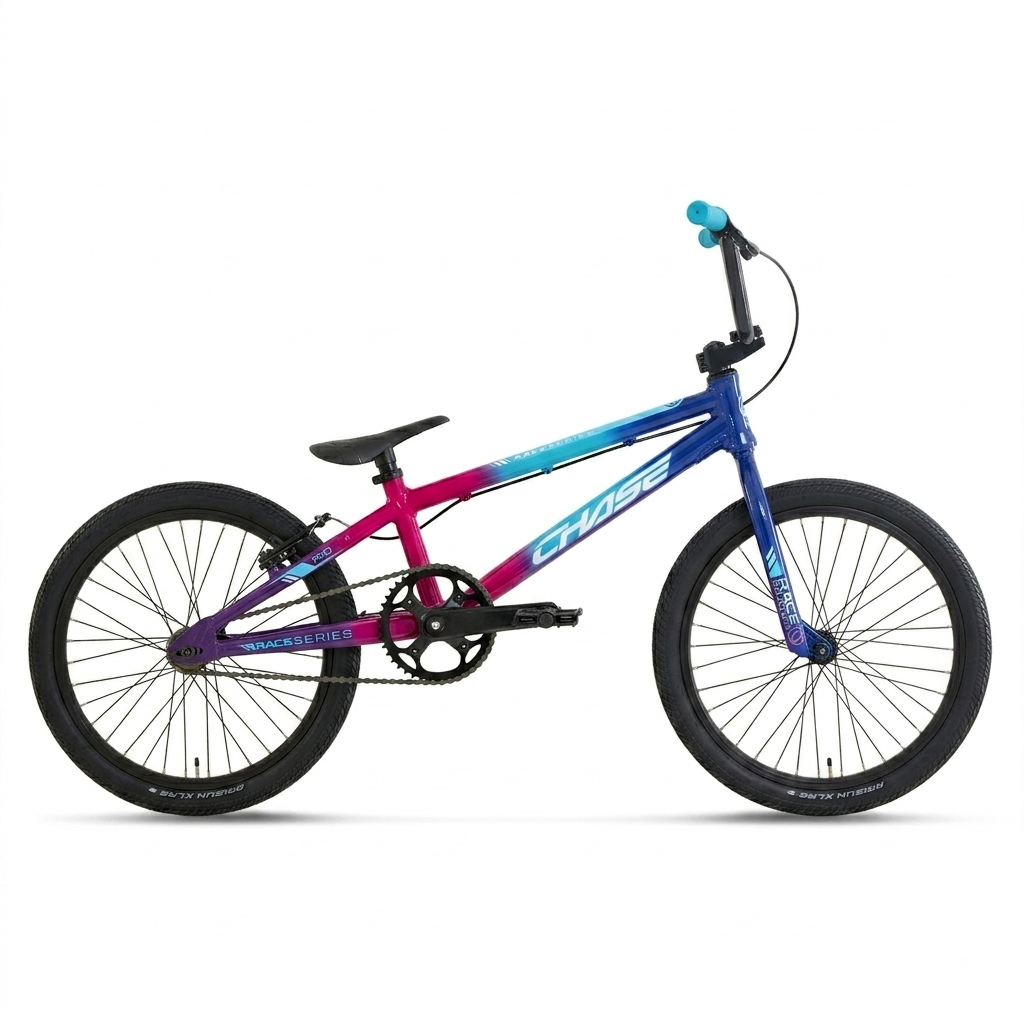

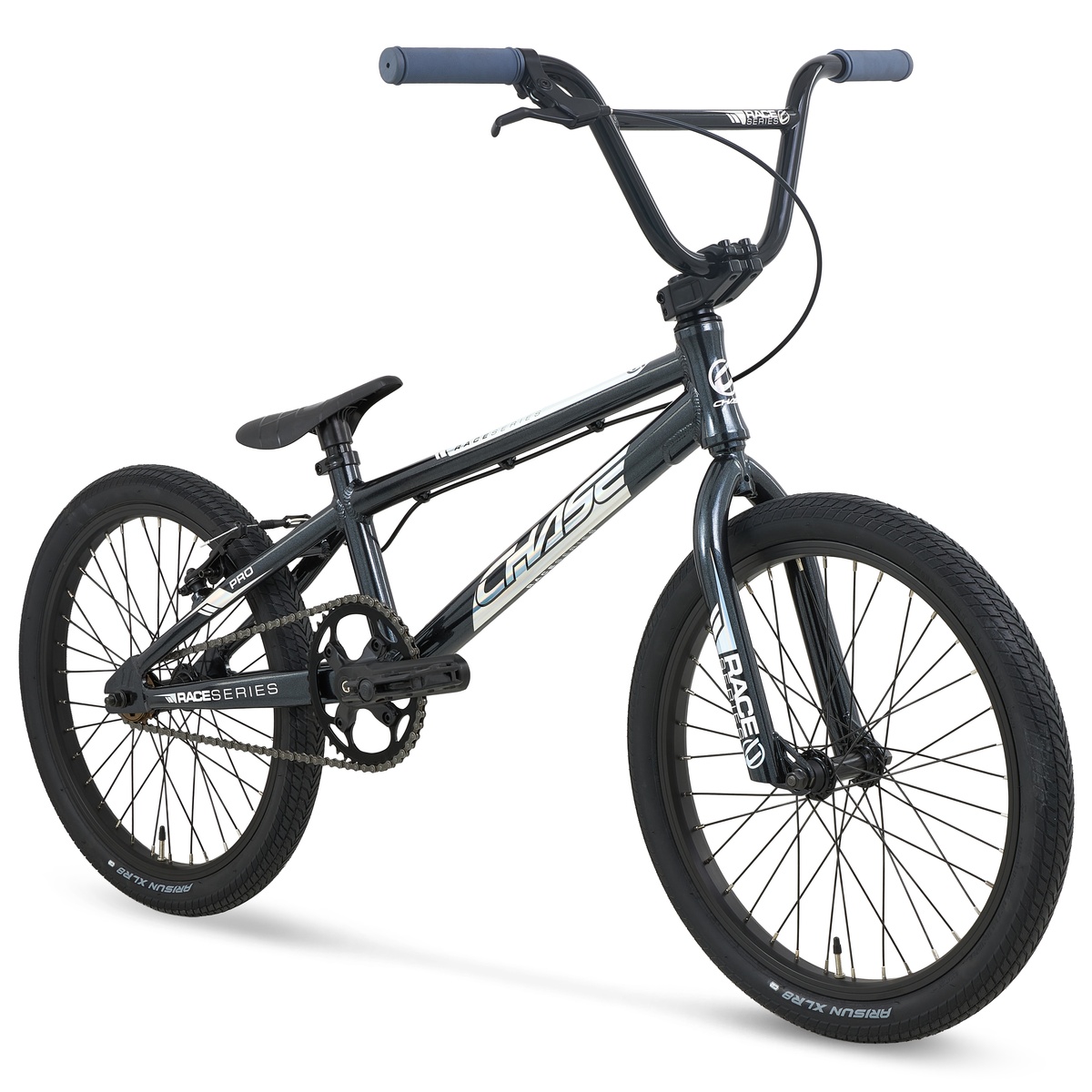

The Chase Race series Pro is the perfect entry-level 20″ BMX race bike for growing BMX racers. Made with an aluminum frame and integrated head tube, using the winning race proven geometry from our championship winning brand, Chase BMX, This BMX is a truly certified BMX racing bike. With race inspired graphics, 100% chromoly bars and forks, sealed hubs, double walled rims, and raced tuned parts from great companies like KMC and ARISUN, giving you the best value for your money in a entry-level race bike, from a company that actually races.
KEY FEATURES
- FRAME: Pro 20.5" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
- FORK: Full Cr-mo, 1-1/8" Steer Tube
- STEM: Top Load, 1-1/8" Steer Tube, Length 53mm, 6061-T6 Alloy
- HANDLEBAR: CHASE Chromo 7.5″
- HEADSET: Integrated IS 42/42 1-1/8", Sealed Bearing
- CHAINRING: 43T 5 Bolts BCD 110mm, Steel
- CRANKSET: 3 Pieces Crank 170mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
- HUBS: 36H, Double Contact Seals Bearing, 3/8" Axle/Nuts, 16T cog
- RIMS: Double Wall Alloy 36H 1.75" Presta Valve Front and Rear
- TIRES: Arisun XLR8 1.75" Wire Bead Front and Rear
- BRAKES: V-Brake 103mm, Pro 2 Fingers lever
- SEAT: Expert/Pro Combo Alloy Post/Nylon Seat
- WEIGHT: 9.5 Kg / 20.94 lb Without Pedal
- RIDER SIZE: 4′ 11.8″ – 5′ 5.4″ / 1M52 – 1M66
| FRAME | Pro 20.5" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals |
| FORK | Full Cr-mo, 1-1/8" Steer Tube |
| HEADSET | Integrated IS 42/42 1-1/8", Sealed Bearing |
| HANDLEBAR | Cr-mo 7.5" Rise, Diameter 22.2mm, 27" Wide, 11° Back Sweep & 3.5° Up Sweep |
| GRIPS | 130mm Soft Single Ply Without Flange |
| STEM | Top Load, 1-1/8" Steer Tube, Diameter 22.2mm, Length 50mm, 6061 T6 Alloy |
| BB | Euro Square 118mm Sealed Bearing |
| CHAINRING | 43 Tooth 4 Bolt 104mm 1/2"x3/32" 3mm Steel Ring |
| CRANK | 3 Pieces Crank 170mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts |
| PEDAL | Platform Nylon 9/16" |
| CHAIN | KMC Z6 1/2"x3/32" |
| COG | Freewheel 16 Tooth 1/2"x3/32" |
| FRONT HUB | 36H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
| REAR HUB | 36H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
| SPOKES | 14 Gauge, Steel |
| NIPPLES | 16mm, 14 Gauge, Brass |
| FRONT RIM | Double Wall Alloy 36H 1.75" Presta Valve |
| REAR RIM | Double Wall Alloy 36H 1.75" Presta Valve |
| FRONT TIRE | Arisun XLR8 1.75" Wire Bead |
| REAR TIRE | Arisun XLR8 1.75" Wire Bead |
| TUBES | 20''*1.5"-1.75" Presta Valve |
| BRAKES | V-Brake 103mm, Pro 2 Fingers Lever |
| SADDLE | Expert/Pro Combo Alloy Post/Nylon Seat |
| SEAT POST | Expert/Pro Combo Alloy 27.2mm |
| SEAT CLAMP | 31.8mm Alloy 1 Bolt |
| FRAME SIZE | TT | CS min | LR | AF | SA | HT | SPL | BBH | WB | WHEELS |
|---|---|---|---|---|---|---|---|---|---|---|
| Micro | 16.25" 412.75mm |
10.85" 275.6mm |
1.8" 46mm |
71° | 69° | 4" 100mm |
8" 203.5mm |
9.1" 231.1mm |
29.09" 739mm |
18×1" |
| Mini | 17.25" 438.15mm |
12.25" 312mm |
1.8" 46mm |
72° | 70° | 4.33" 110mm |
8.8" 225mm |
10.6" 269.2mm |
31.49" 800mm |
20×1-1/8" |
| Junior | 18.75" 476.25mm |
13.00" 330.2mm |
1.8" 46mm |
73° | 72° | 4.33" 110mm |
8.8" 225mm |
10.6" 269.2mm |
33.85" 859.9mm |
20×1-1/8" |
| Expert | 19.75" 501.65mm |
13.25" 336.5mm |
1.8" 46mm |
73° | 72° | 4.33" 110mm |
8.8" 225mm |
11.0" 279.4mm |
34.79" 883.8mm |
20×1-3/8" |
| Pro | 20.5" 520.7mm |
14.25" 361.9mm |
1.8" 46mm |
74° | 72° | 4.7" 120mm |
9.3" 238mm |
11.0" 279.4mm |
36.9" 938mm |
20×1.75" |
With All complete bikes, we recommend having a professional Bicycle dealer complete your initial build up as well as doing a 1 month break in adjustment to check all specs and adjust the bike as needed for optimal riding performance. All bikes will need some adjustment out of the box and this is the responsibility of the final owner to make these adjustments.
